Waterbox Aquariums

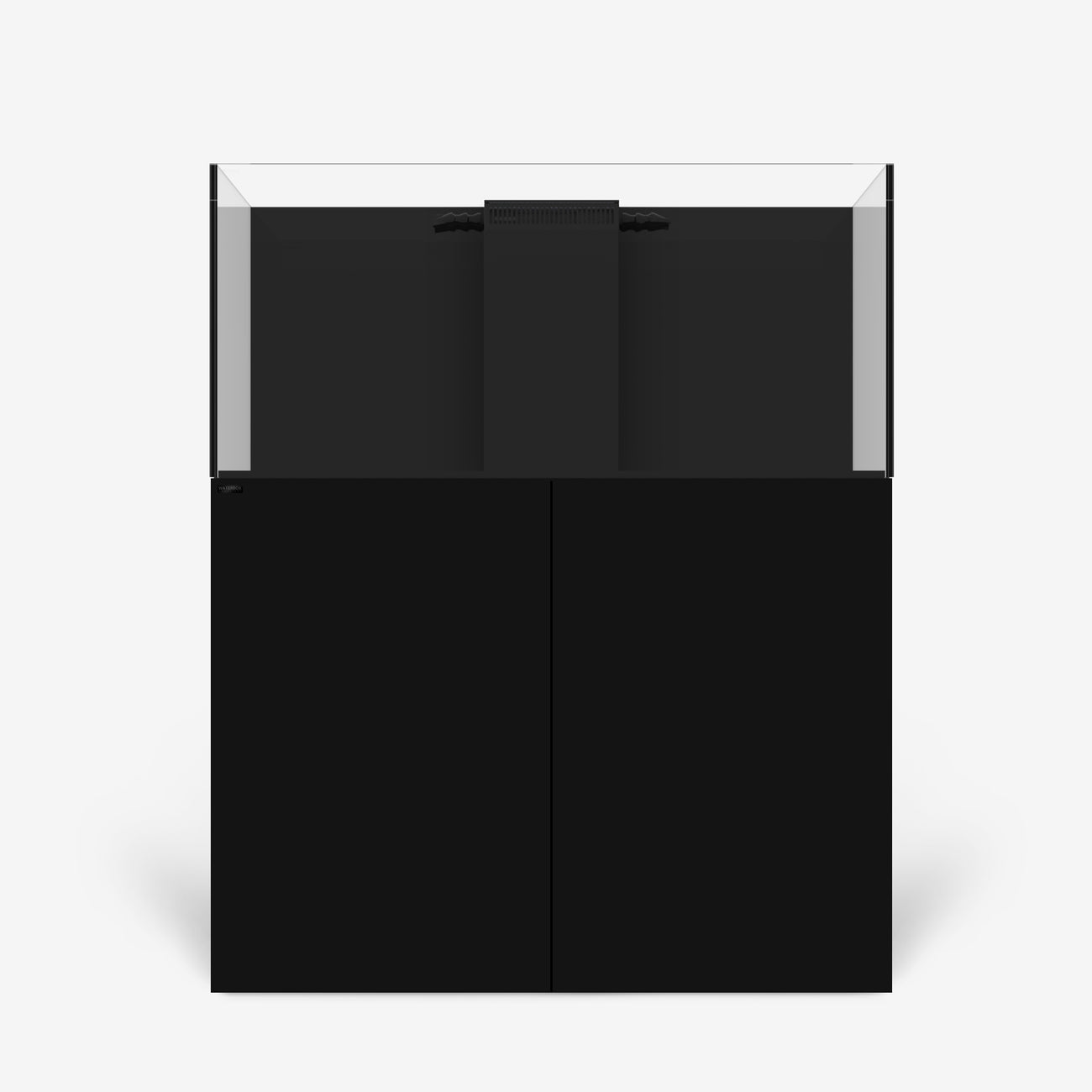

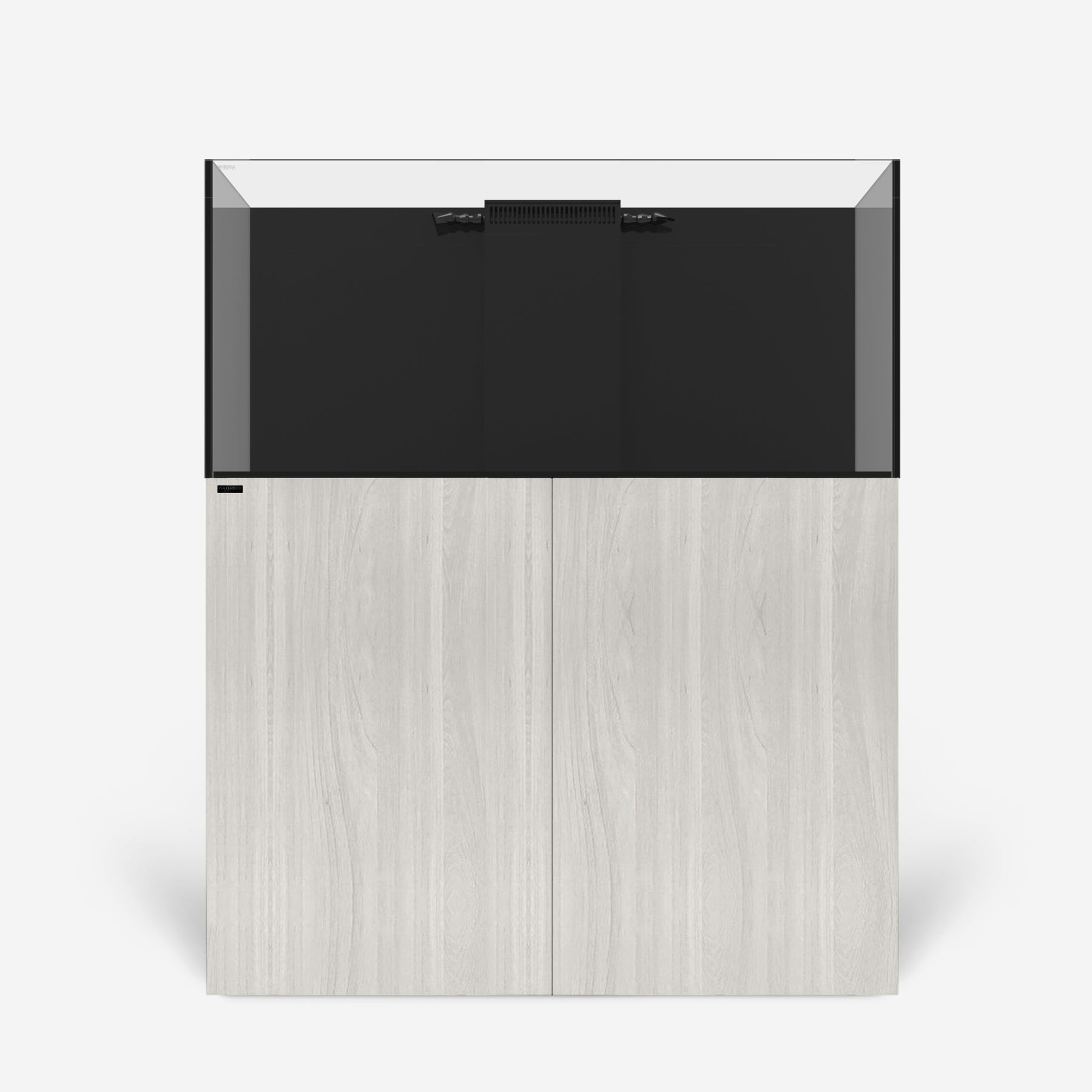

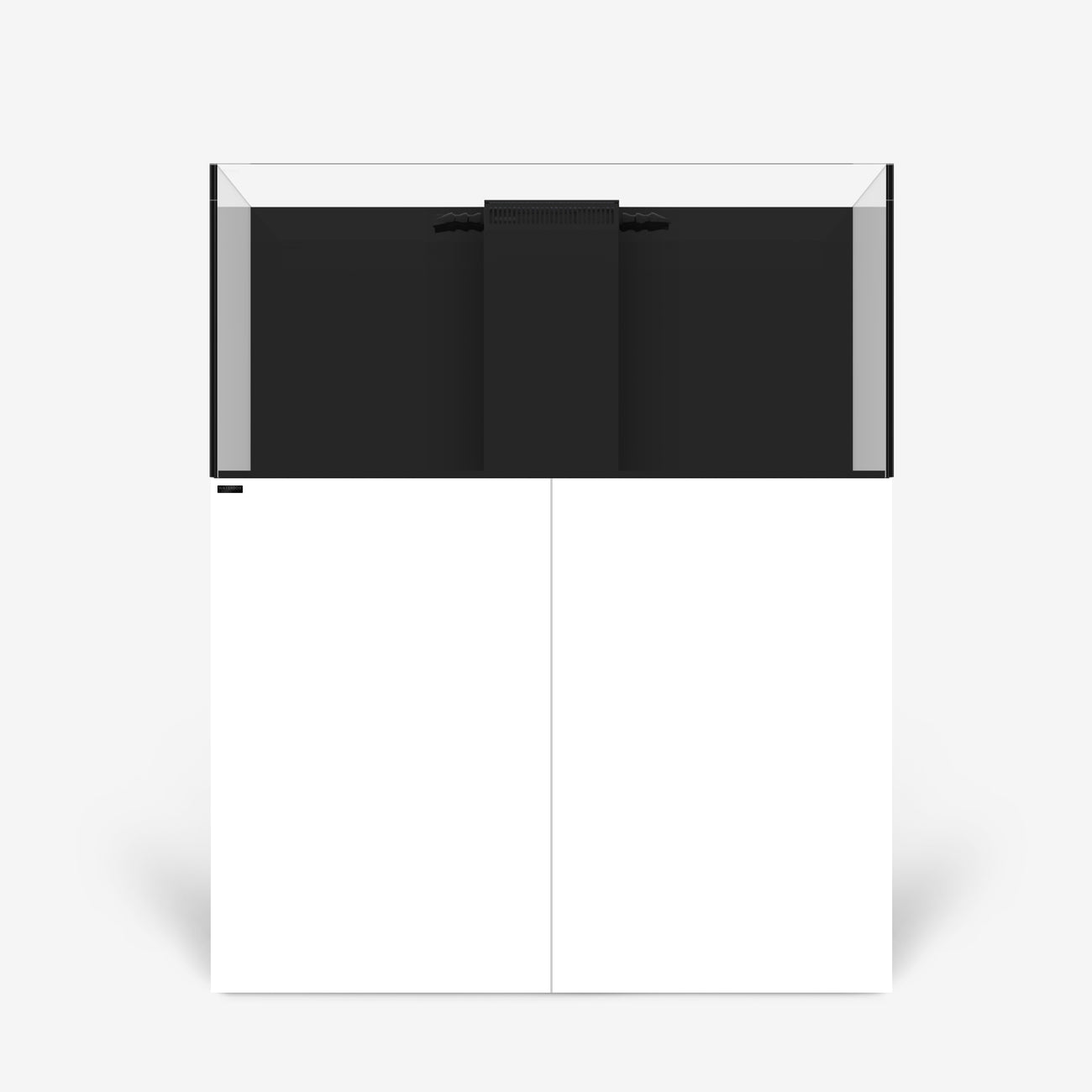

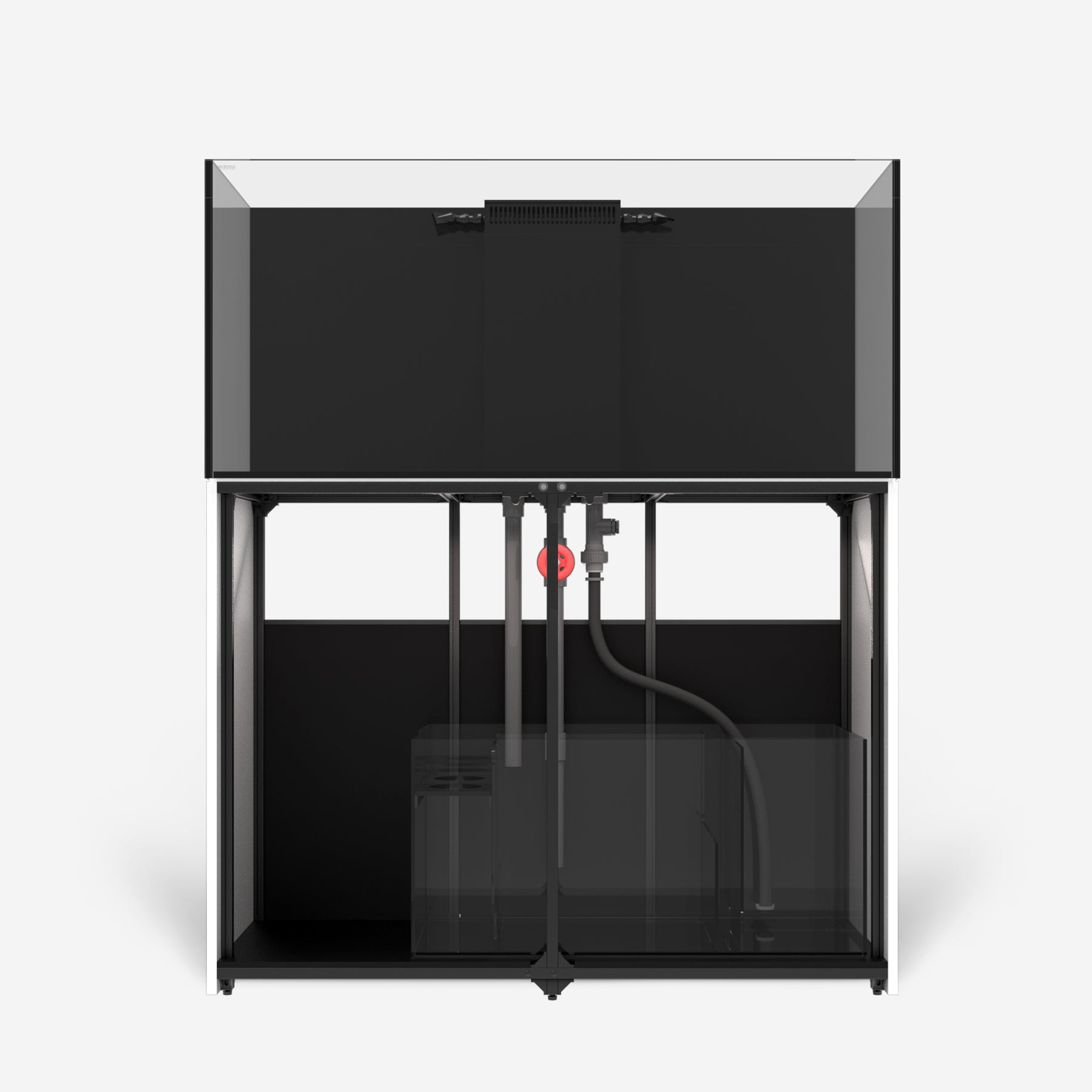

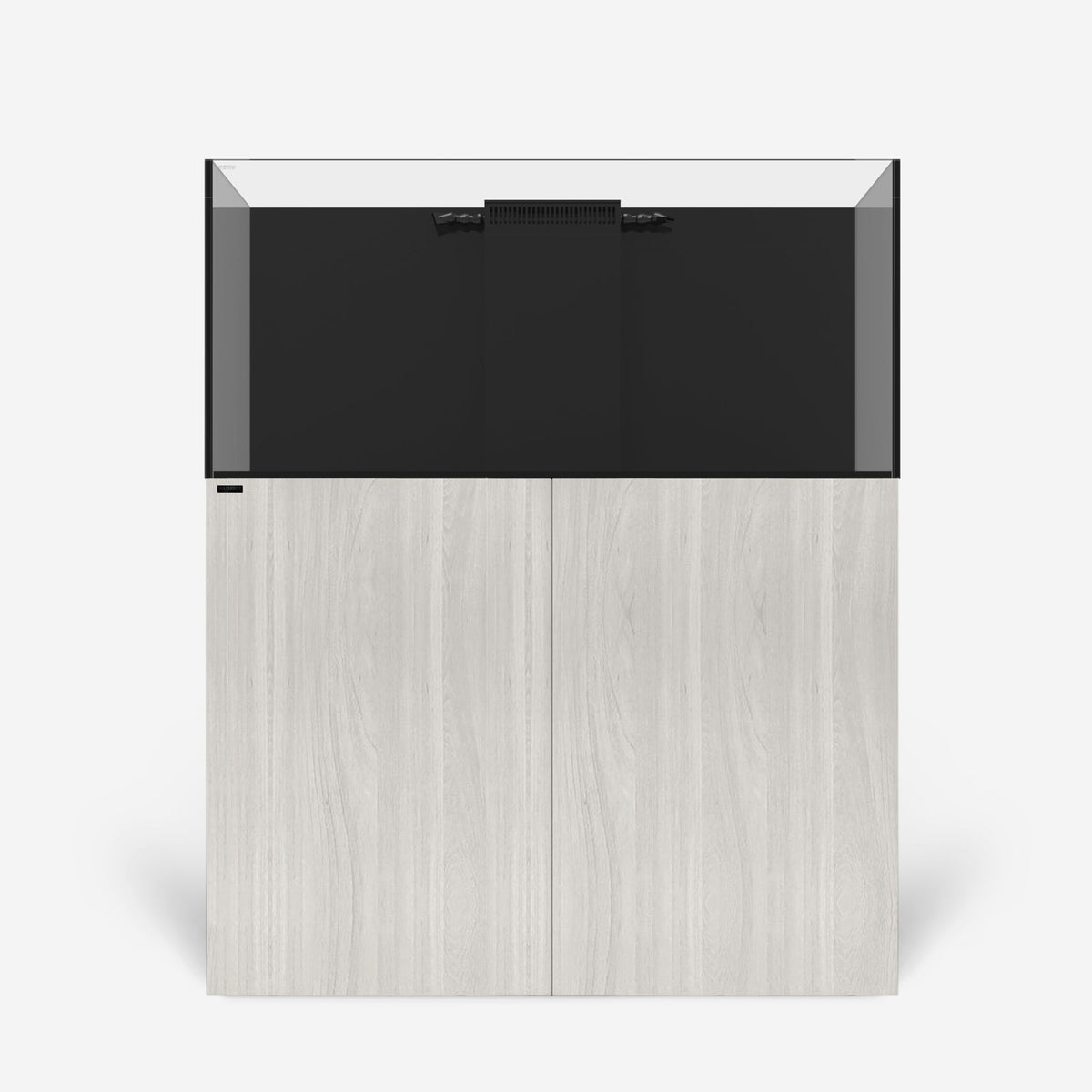

MARINE X 110.4
• Height with Cabinet: 1450mm / 57.1"
• Display Volume: 301L / 79.6gal
• Total Volume: 399L / 105.3gal
• Glass Thickness: 12mm
• Includes: Aquarium, Cabinet, Sump, Plumbing Kit, Filter Socks, Sock Silencers
View Full Specifications
MARINE X 110.4
White
TOR
1260 Lakeshore Rd. E
Mississauga ON L5E 3B8
Canada
The Display
A Flawless Viewing Experience
Rimless
Rimless aquariums provide a modern look with an unobstructed viewing experience.
Ultra-Clear Glass
Offers 91% light transmittance and complete visual clarity up to 19mm (3/4”).
High Strength Black Silicone
Creates clean lines and provides your aquarium with the longevity it needs.
Central Overflow
Dual returns and a removable weir comb allow for easy maintenance and just the right amount of flow.
The Plumbing
A Safe & Silent Operation
Safety Drain
Prevents overflowing of the aquarium.
Main Drain
Directs water to the sump filtration system.
Return Line
Equipped with dual adjustable nozzles for precise water flow.
The Plumbing
Easy To Assemble
Downflow Drain System
Provides the ability to push higher flow rates through the drain.
Quick Connect Fittings
Assembly is quick and easy with no gluing required.
Precision Overflow Valve
Allows for precise adjustments through main drain ensuring quiet operation.
The Sump
Designed for simplicity and functionality
Filter Sock Filtration
Our 225 micron felt socks will keep the water in as clean and clear as the glass itself.
Skimmer & Media Reactor Chamber
Ample space for the industry's leading skimmers and reactors.
RO Reservoir
Integrated reservoir for ease of maintenance using an electronic top-off system.
Return Pump Chamber
Adequate space for most common aquarium return pumps.
The Cabinetry
Strength and Durability
Unveiling our new marine-grade cabinetry system. Showcasing strength, durability, and corrosion resistance. With long lasting performance at its core, this series is engineered to stand the test of time.
Aluminum Framed
Constructed with aluminum framing to easily withstand the weight and humidity of your aquarium system.
Laminated Finish
Laminated wood panels skirt the aluminum framing for a sleek, modern look.
Adjustable Leveling Feet
An easy and effective way to ensure your aquarium is level, front to back and side-to-side.
Accessibility
The open back design allows for optimal ventilation and easy cord routing.
Financing
Reef Now. Pay Later.
Waterbox now offers two convenient ways to pay for your aquarium purchase over time.
MARINE X
Technical Specifications

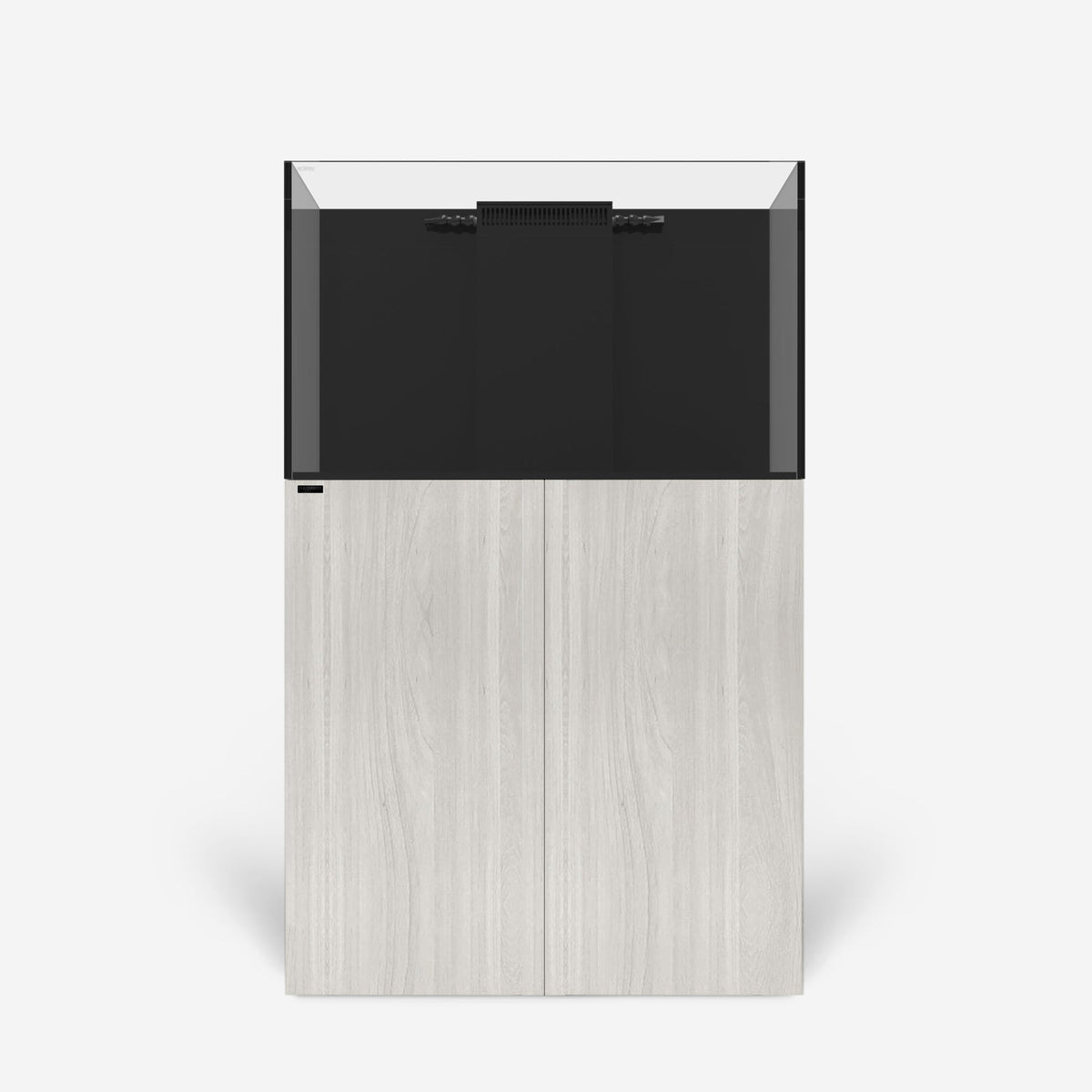

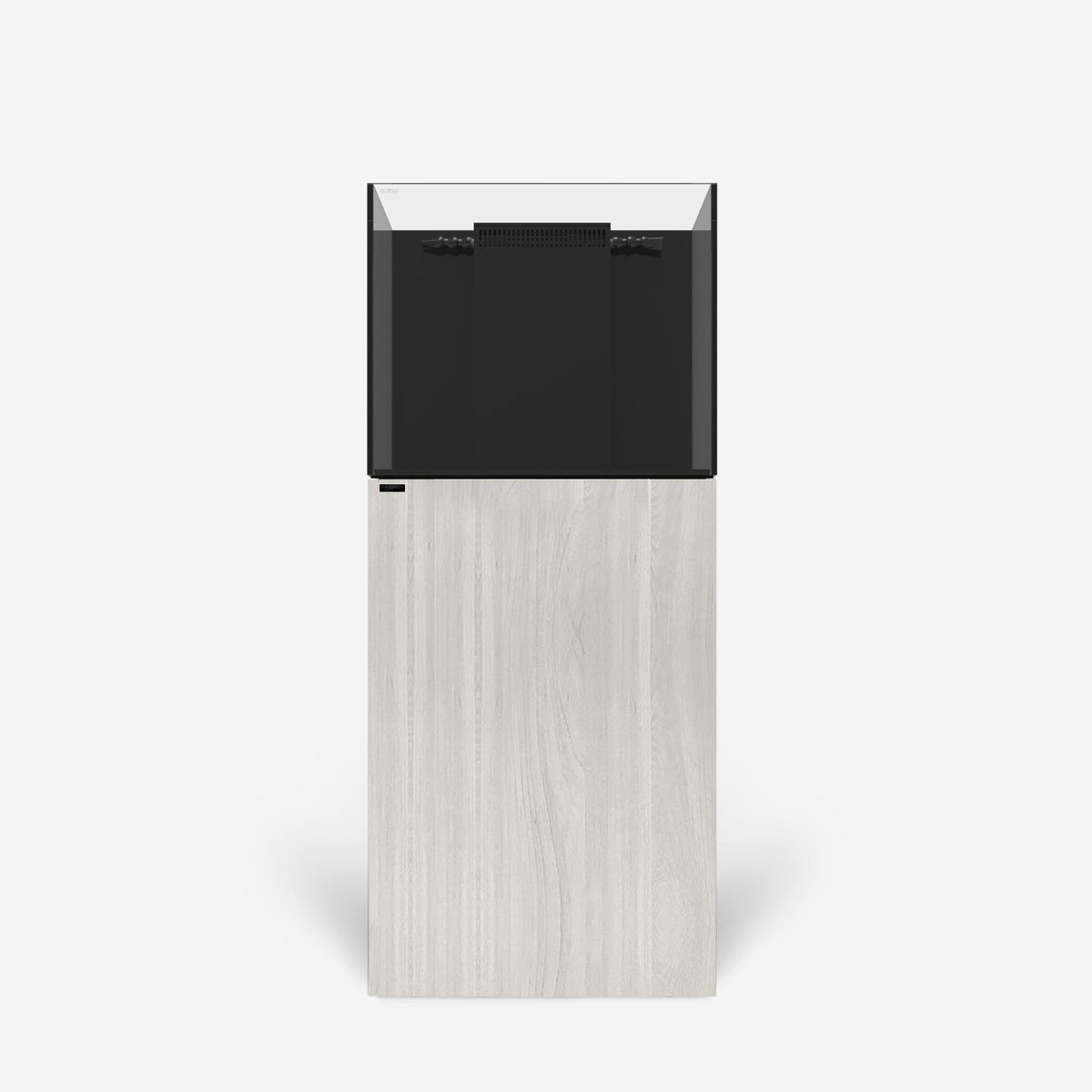

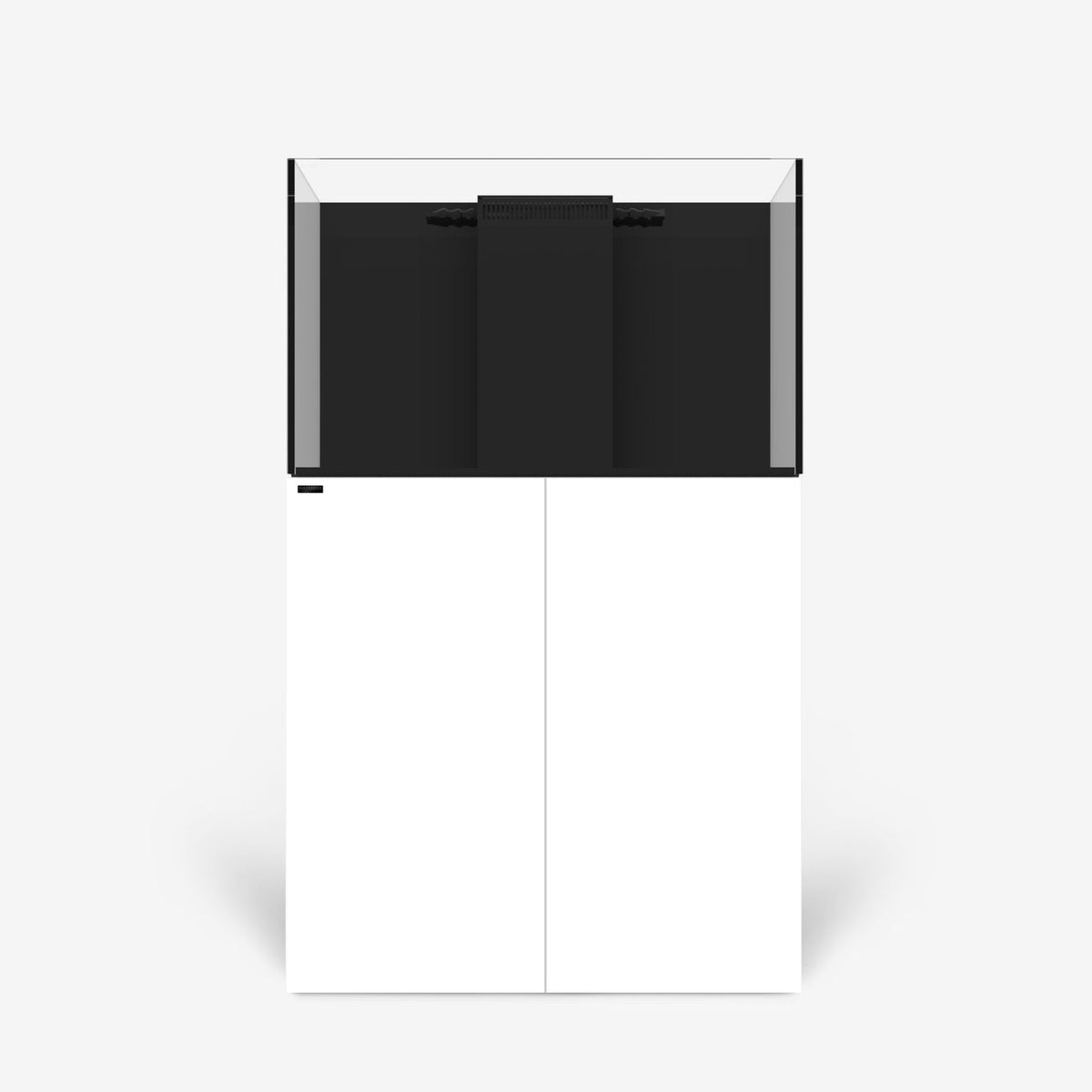

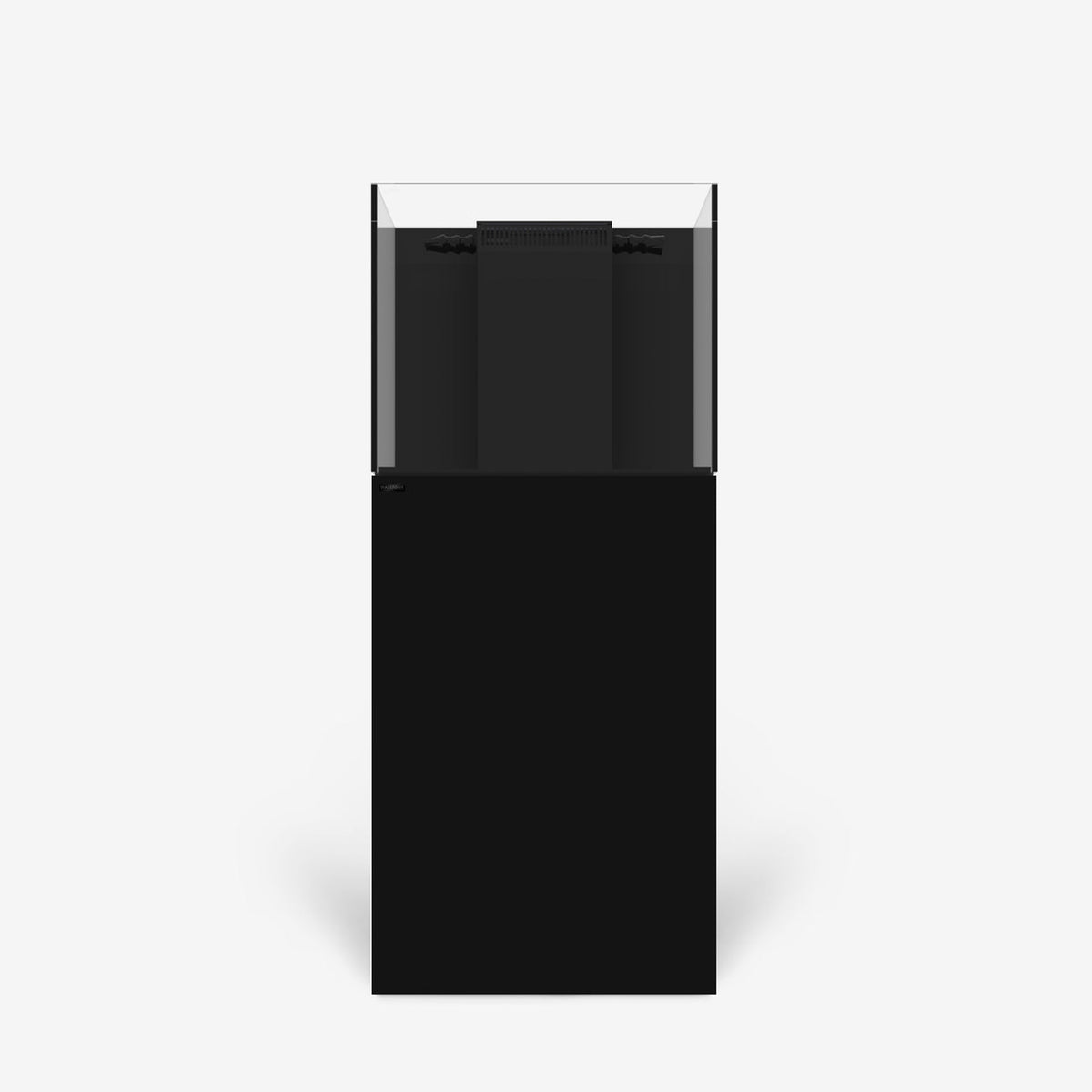

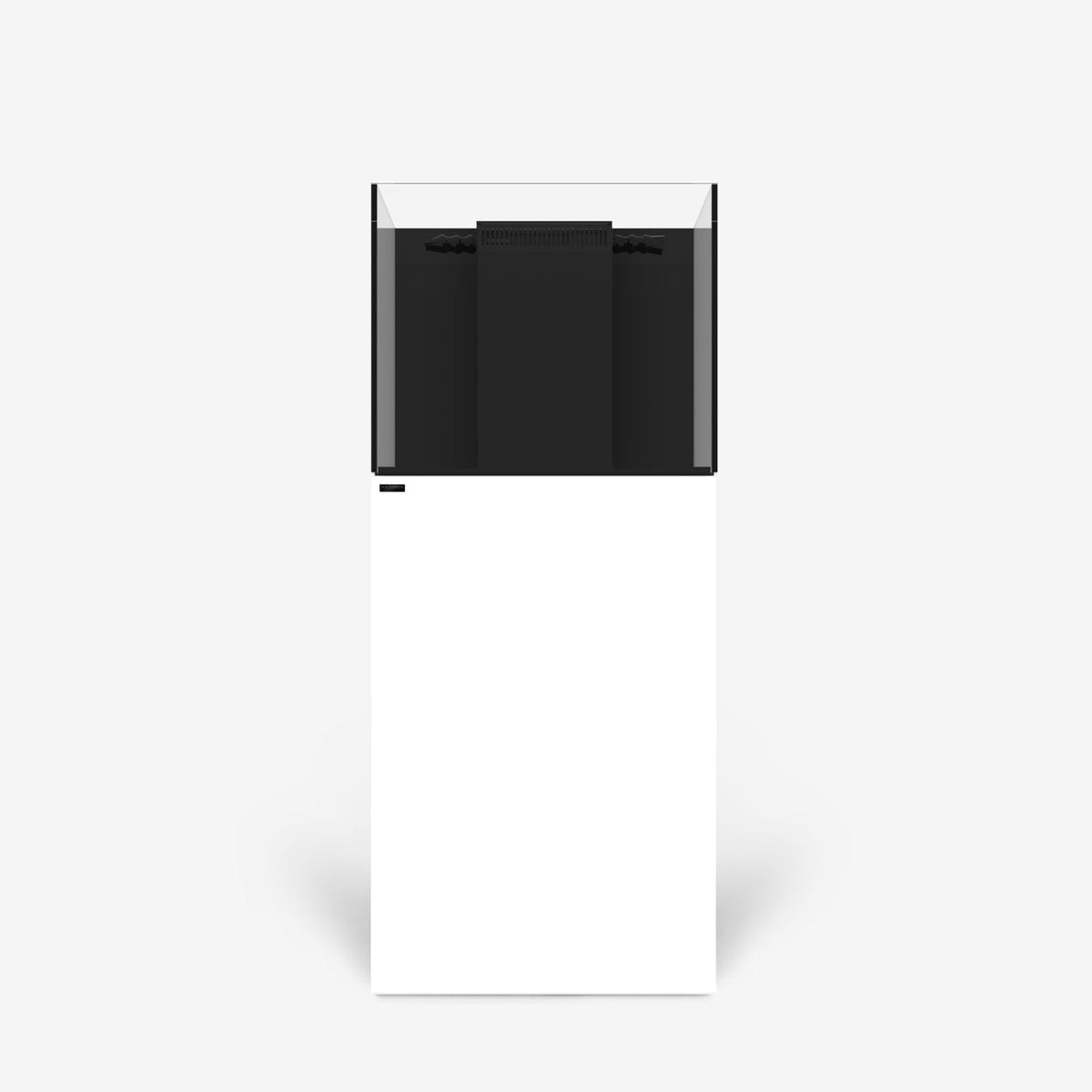

| Product Model | MARINE X 60.2 | MARINE X 90.3 | MARINE X 110.4 | |
|---|---|---|---|---|
| System | Height with Cabinet | 1,400mm/55.6" | 1,450mm/57.1" | 1,450mm/57.1" |
| Total Volume with RO | 211 L/55.6 gals | 342 L/90.2 gals | 418 L/110.5 gals | |
| Total System Weight | 88 kg/194 lbs | 126 kg/278 lbs | 174 kg/384 lbs | |
| Display Tank |
Tank Dimensions | 600 x 500 x 500mm | 900 x 500 x 550mm | 1,200 x 500 x 550mm |
| 23.6" × 19.7" × 19.7" | 35.4" × 19.7" × 21.7" | 47.2" × 19.7" × 21.7" | ||
| Glass Thickness | 10mm (2/5") | 12mm (1/2") | 12mm (1/2") | |
| Aquarium Volume | 136 L/36 gals | 224 L/59.3 gals | 301 L/79.6 gals | |
| Aquarium Weight | 47 kg/104 lbs | 54 kg/119 lbs | 95 kg/209 lbs | |
| Glass Material | Ultra-clear Low Iron glass (front and sides) | |||
| Transmittance | 91% | |||
| In-cabinet Sump |
Dimensions | 510 x 410 x 380mm | 800 x 410 x 380mm | |
| 20.1" × 16.1" × 15" | 31.5" × 16.1 × 15" | |||
| Sump Volume | 74 L/19.6 gals | 117 L/31 gals | ||
| Sump Weight | 13 kg/29 lbs | 38 kg/84 lbs | 38 kg/84 lbs | |
| Glass Thickness | 6mm (1/4") | 6mm (1/4") | ||
| Skimmer Chamber (Int. Dimensions) |
308 x 258mm | 388 x 343mm | ||
| 12.1" × 10.2" | 15.3" × 13.5" | |||
| Pump Chamber (Int. Dimensions) |
140 x 210mm | 210 x 150mm | ||
| 5.5" × 8.3" | 8.3" × 5.9" | |||
| RO Reservoir (Int. Dimensions) |
140 x 183 x 359mm | 210 x 243 x 359mm | ||
| 5.5" × 7.2" × 14.1" | 8.3" × 9.6" × 14.1" | |||
| RO Volume | 9.2 L/2.4 gals | 18.3 L/4.8 gals | ||
| Plumbing | Main Drain | DN20 (ID: 20mm OD: 25mm) | DN25 (ID: 25mm OD: 32mm) | |
| Emergency Overflow | DN20 (ID: 20mm OD: 25mm) | DN25 (ID: 25mm OD: 32mm) | ||
| Pump Return | DN20 (ID: 20mm OD: 25mm) | DN20 (ID: 20mm OD: 25mm) | ||
| Return Hose | lD: 18mm OD: 24mm | |||
| Nozzle(s) (Thread Size) | 2 x M20 (20mm) | |||
| Filtration | 225 Micron Fileter Socks | 1 x 105mm/4" FELT | 2 x 105mm/4" FELT | |
| Filter Sock Silencers | 1 x 105mm/4" | 2 x 105mm/4" | ||
| Interchangable with Roller Filter | YES | YES | ||
| Cabinet | Cabinet Model | ALU 2420 | ALU 3620 | ALU 4820 |
| Cabinet Dimensions | 600 x 500 x 900mm | 900 x 500 x 900mm | 1,200 x 500 x 900mm | |
| 23.6" × 19.7" × 35.4" | 35.4" × 19.7" × 35.4" | 47.2" × 19.7" × 35.4" | ||
| Sump Compartment (Int. Dimensions) |
524 x 468 x 813mm | 824 x 448 x 813mm | 1,124 x 440 x 813mm | |
| 20.6" × 18.4" × 32" | 32.4" × 17.6" × 32" | 44.3" × 16.5" × 32" | ||
| Cabinet Framework | Anti-corrosion Aluminum Alloy | |||
| Door & Side Panels | 18mm PVC Laminated Wood Oriented Strand Board | |||
| Bottom Panels | 10mm PVC Board | |||
| Back Panels | 6mm PVC Board | |||
| Cabinet Weight | 28 kg/62 lbs | 34 kg/75 lbs | 41 kg/90 lbs | |
| Cabinet Color | WHT-White, BLK-Black, ASP-Aspen | |||
