Waterbox Aquariums
CLEAR 2420 PLUS Edition
Introducing the Waterbox PLUS™ Edition aquarium systems - your hassle-free solution for setting up a new aquarium. Our meticulously designed complete packages take the guesswork out of the equation, providing you with expertly paired lighting, filtration, pumps, and supplies.
- Freshwater LED (FLED) Lighting System - 21
- FLED support with extension
- SCUBA Preset Submersible Heater 200 Watts
CLEAR 2420 PLUS Edition
No Cabinet
TOR
1260 Lakeshore Rd. E
Mississauga ON L5E 3B8
Canada
CLEAR
Cinematic In Every Sense
Aquascaping has never been more beautiful and simplified. The CLEAR is designed thoughtfully with the freshwater and planted aquarium enthusiast in mind.

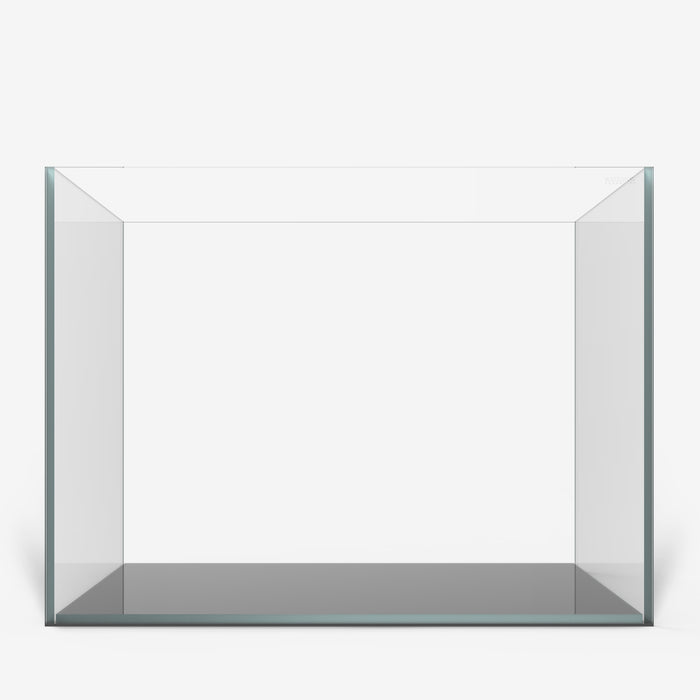

Low Visibility Edges
New Mitered edges are stronger and hide silicone seams. Our silicone seams have exceptional strength and a clean appearance.
Self-Leveling Mat
Includes a self-leveling foam mat, which keeps your aquarium level on uneven surfaces and reduces tension on the glass.
Cabinetry
Next Level Stability
Waterbox Furniture is designed to elevate your living spaces with our true first in class cabinetry and finishes.
Aluminum Framed
Constructed with 20 mm aluminum framing to easily withstand the weight and humidity of your aquarium system.
Laminated Finish
Laminated wood panels skirt the aluminum framing for a sleek, modern look.
Adjustable Leveling Feet
An easy and effective way to ensure your aquarium is level, front to back and side-to-side.
Accessibility

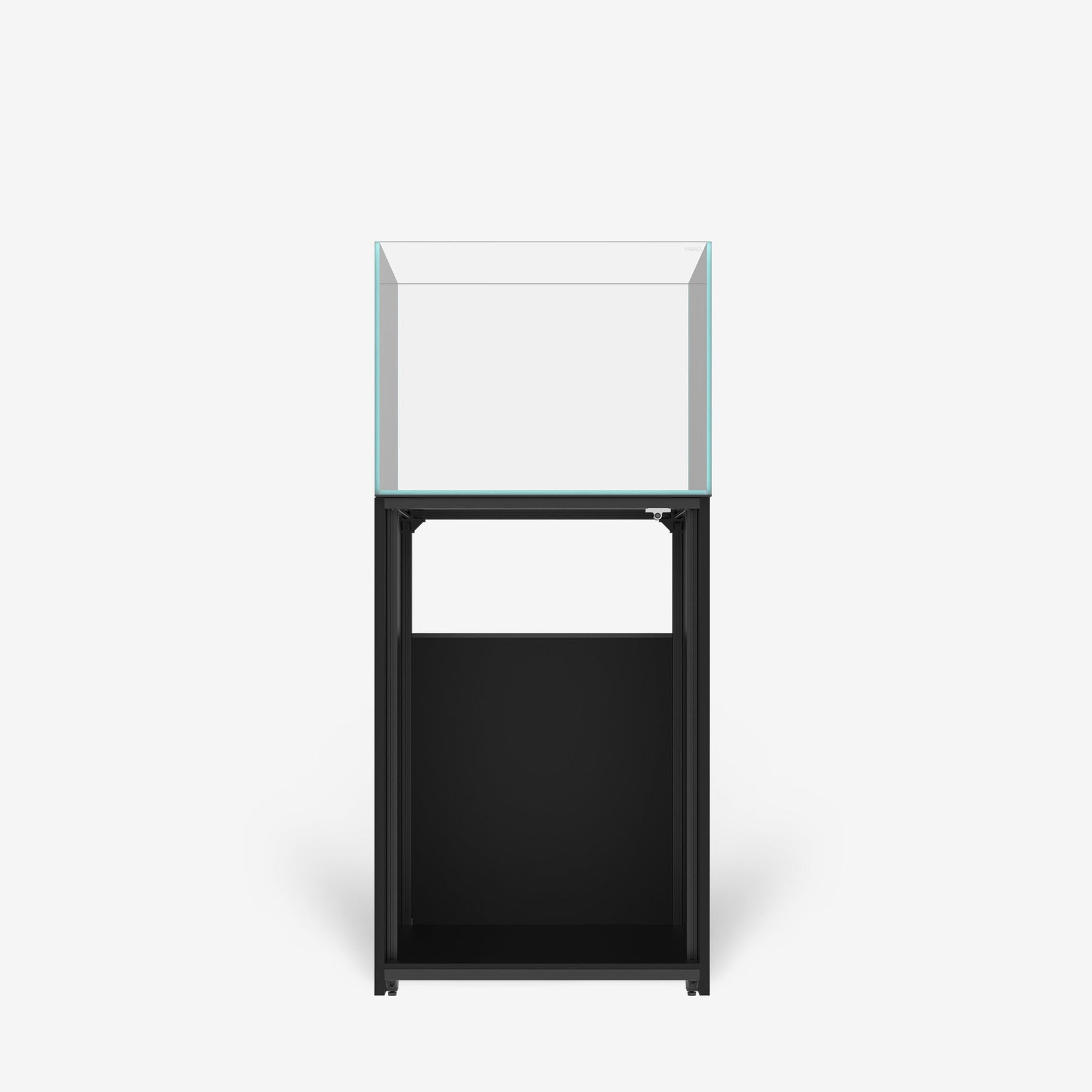

The open back design allows for optimal ventilation and easy cord routing.
CLEAR
33 - 167 Gallons
CLEAR
Technical Specifications
| Product Model | CLEAR 2420 | CLEAR 3620 | CLEAR 4820 | CLEAR 6025 | CLEAR 7225 | |
|---|---|---|---|---|---|---|
| Aquarium | Dimensions (Length x Width x Height) |
600 x 500 x 450mm | 900 x 500 x 450mm | 1200 x 500 x 500mm | 1536 x643 x 550mm | 1836 x 643 x 600mm |
| 23.4"×19.7"×17.7" | 35.4"×19.7"×17.7" | 47.2"×19.7"×19.7" | 60.5"×25.3"×21.7" | 72.3"×25.3"×23.6" | ||
| Glass Thickness | 8mm (5/16") | 10mm (2/5") | 12mm (1/2") | 15mm (3/5″) | 19mm (3/4") | |
| Aquarium Volume | 125 L/33 gals | 186 L/49.1 gals | 273 L/72.2 gals | 494 L/130.5 gals | 632 L/167 gals | |
| Aquarium Weight | 27.0 kg / 59.5 lb | 44.5 kg / 98.1 lb | 70.0 kg / 154.3 lb | 145.0 kg / 319.7 lb | 194.0 kg / 427.7 lb | |
| Glass Material | Ultra-clear glass | |||||
| Transmittance | 91% | |||||
| EVA Mat | 1 | 1 | 1 | 1 | 1 | |
| Mitered Edges | X | X | X | X | X | |
| Cabinet | Cabinet Model | ALU 2420 | ALU 3620 | ALU 4820 | MSII 6025 | MSII 7225 |
| Dimensions (Length x Width x Height) |
600 x 500 x 900mm | 900 x 500 x 900mm | 1,200 x 500 x 900mm | 1,536 x 643 x 927mm | 1,836 x 643 x 927mm | |
| 23.6" × 19.7" × 35.4" | 35.4" × 19.7" × 35.4" | 47.2" × 19.7" × 35.4" | 60.5" × 25.3" × 36.5" | 72.3" × 25.3" × 36.5" | ||
| Cabinet Framework | Anti-corrosion Aluminum Alloy | |||||
| Door & Side Panels | 18mm PVC Laminated Wood Particle Board | |||||
| Bottom Panels | 10mm PVC Board | |||||
| Back Panels | 6mm PVC Board | |||||
| Cabinet Color | WHT-White, BLK-Black, ASP-Aspen | |||||
| SUS304 Hinges | ||||||
| Leveling Feet | ||||||
| System | Height with Cabinet | 1350mm/53.1" | 1350mm/53.1" | 1400mm/55.1" | 1477mm/58.1" | 1527mm/60.1" |
