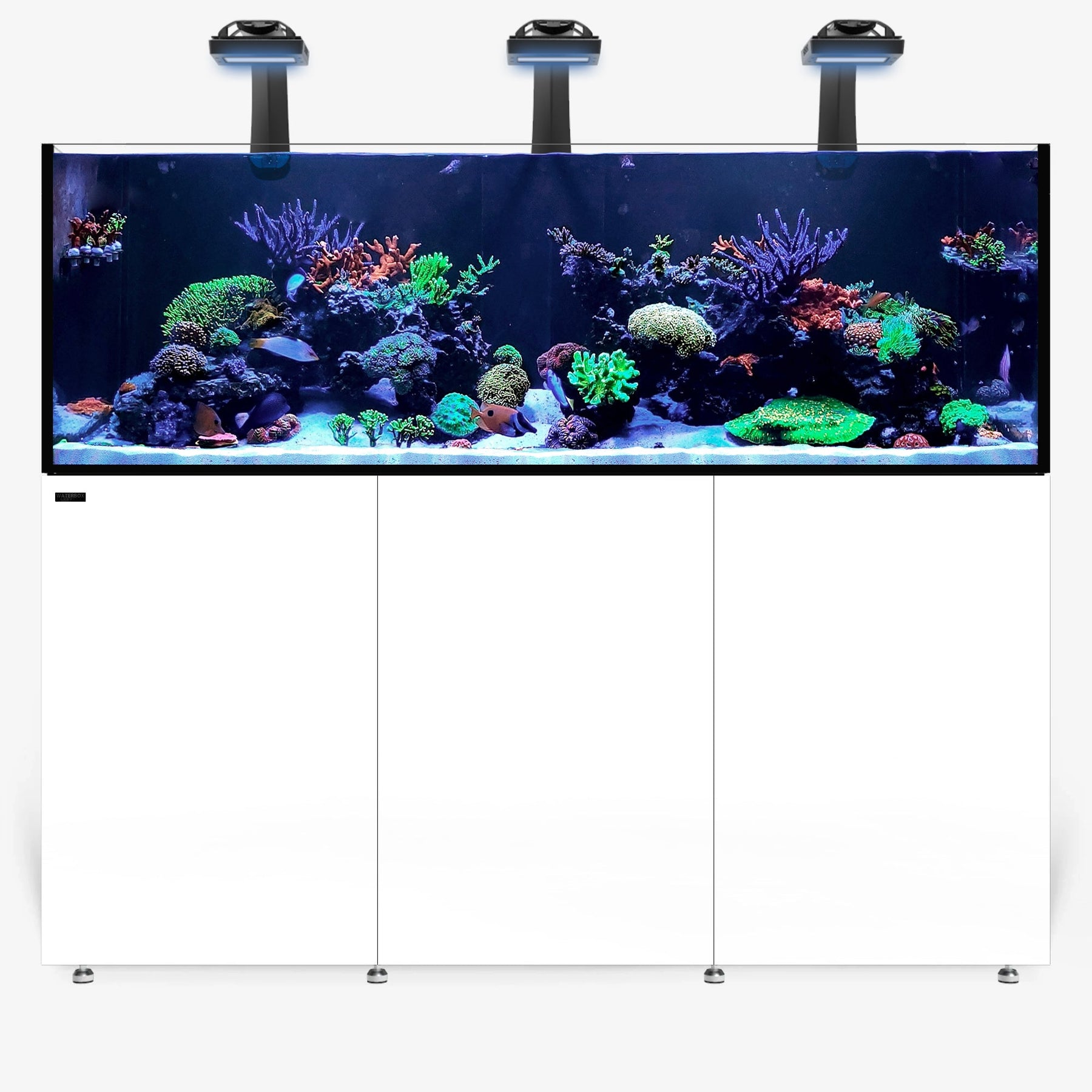

INFINIA Reef 230.6 PLUS Edition

Waterbox Aquariums

INFINIA Reef 230.6 PLUS Edition

Sale price$11,951.94 CAD

Introducing the Waterbox PLUS™ Edition aquarium systems - your hassle-free solution for setting up a new aquarium. Our meticulously designed complete packages take the guesswork out of the equation, providing you with expertly paired lighting, filtration, pumps, and supplies.

  • Radion XR15 G6 Blue(3)
  • Radion RMS (XR15)(3)
  • Protein Skimmer 400
  • Control Box
  • SYNCRA SDC 9.0
  • Mesh Lid System
  • VorTech (MP40)
  • Osmo 3 Auto Top Off
  • Scuba Preset Submersible Heater 300x (2), 200x (1)

View Aquarium Specifications

Color:White
This item is on backorder. Estimated to ship in April 2025.
Pickup available at TOR Usually ready in 24 hours

INFINIA Reef 230.6 PLUS Edition

White

TOR

Pickup available, usually ready in 24 hours

1260 Lakeshore Rd. E
Mississauga ON L5E 3B8
Canada

+18006742608

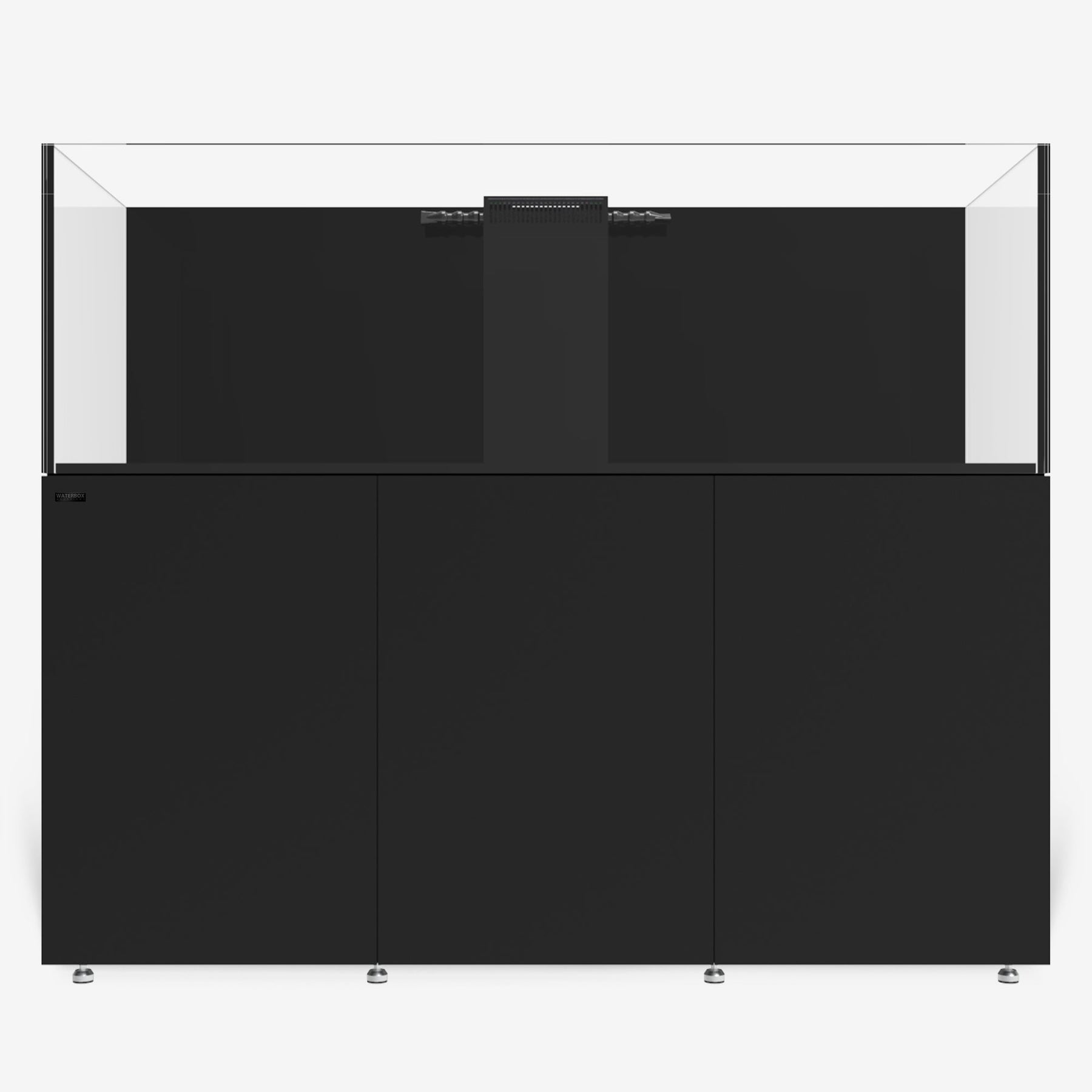

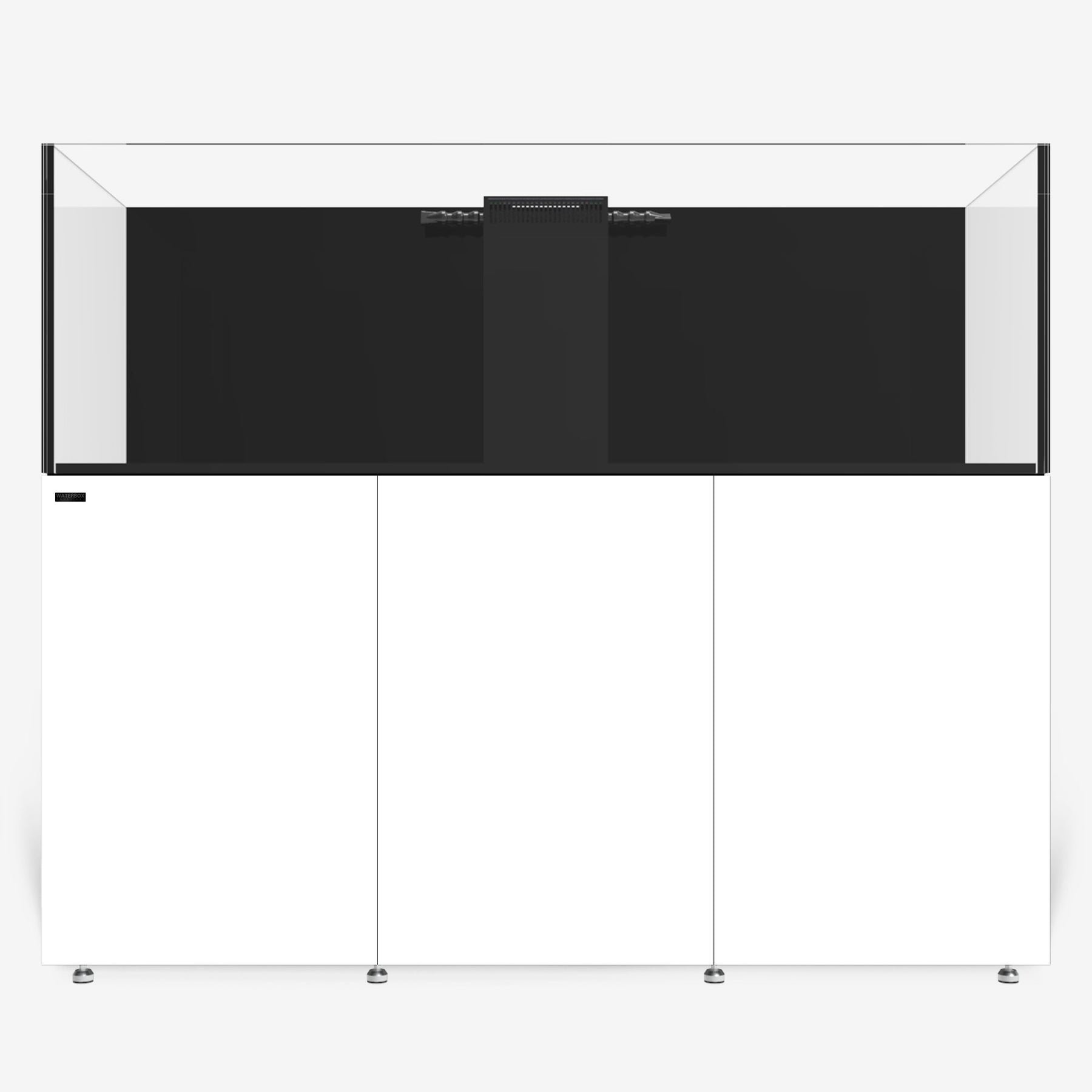

The Display

Reach New Heights

Waterbox Aquariums® takes pride in hand-crafting stunning glass display aquariums that are renowned for superior cleanliness and quality.

Renowned for superior quality.
Ultra-Clear diamond beveled glass offers visual clarity up to 19mm (3/4”).
High-strength black silicone provides clean lines and longevity.
Central Overflow with water etched glass weir comb allows for optimal flow.

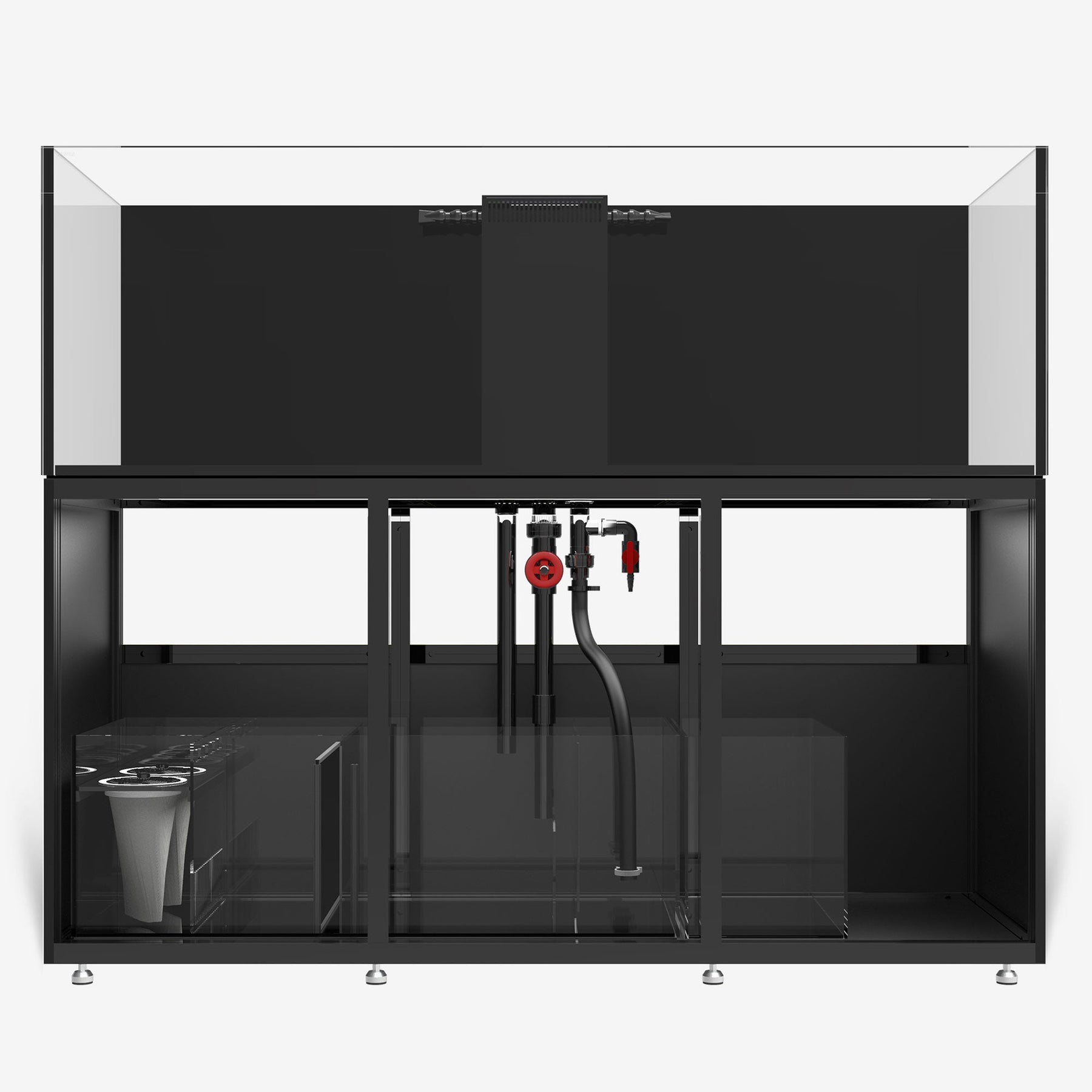

The Plumbing

Safe, Silent and Tested for Performance

Our plumbing systems offer the convenience of quick and easy assembly, while delivering high-performance results equivalent to those achieved through custom designs.

Quick Connect Fittings assemble quick and easy with no glue required.
Easy Assemly with no glue required
Return Line includes dual adjustable nozzles for maximum turnover.
Precision Overflow Valve allows for precise adjustments ensuring quiet operation.
Manifold provides access for additional reactors and equipment.
Designed to prevent flooding.
Check Valve ensures back syphon does not overflow the sump.
Check valve only on INFINIA REEF models.

The Sump

Did you say filter roller?

The INFINIA® sump system features an integrated filter sock chamber which can easily adopt the most popular filter rollers.

Filter Sock Filtration featuring dual 7-inch filter socks to maximize filtration capacity.
Skimmer or Media Reactor Chamber with ample space for the industry's leading skimmers and reactors.
Easily adopt the most popular filter rollers.
Refugium maximizes your nutrient export.
Included RO Reservoir for ease of maintenance using an electronic top-off system.

Sump Diagrams

The Cabinetry

Strength and Durability

Unveiling our new MarineShield® cabinetry system. Showcasing strength, durability, and corrosion resistance. With long lasting performance at its core, this series is engineered to stand the test of time.

Constructed with aluminum framing to easily withstand the weight and humidity of your aquarium system.
High weight capacity adjustable leveling feet ensure your aquarium is level, front to back and side-to-side.

Financing

Reef Now. Pay Later.

Waterbox now offers two convenient ways to pay for your aquarium purchase over time.

Technical Specifications

INFINIA FRAG

Product Model INFINIA
FRAG 125.4
INFINIA
FRAG 155.5
INFINIA
FRAG 175.6
System Height with Cabinet 1,337mm/52.6" 1,337mm/52.6" 1,337mm/52.6"
Total Volume with ATO 469 L/123.8 gals 585 L/154.6 gals 690 L/182.2 gals
Total System Weight 175 kg/386 lbs 211 kg/465 lbs 232 kg/511 lbs
Display
Tank
Tank Dimensions 1,223 x 643 x 410mm 1,536 x 643 x 410mm 1,836 x 643 x 410mm
48.2" × 25.3" × 16.1" 60.5" × 25.3" × 16.1" 72.3" × 25.3" × 16.1"
Glass Thickness 12mm (1/2") 12mm (1/2") 12mm (1/2")
Aquarium Volume 295 L/78 gals 372 L/98.4 gals 446 L/117.9 gals
Aquarium Weight 82 kg/181 lbs 98 kg/216 lbs 113 kg/249 lbs
Glass Material Ultra-clear Low Iron glass (front and sides)
Transmittance 91%
In-cabinet
Sump
Dimensions 864 x 475 x 380mm 1,067 x 475 x 380mm 1,143 x 475 x 380mm
34" × 18.7" × 15" 42" × 18.7" × 15" 45" × 18.7" × 15"
Sump Volume 140 L/37.1 gals 162 L/42.8 gals 192 L/50.8 gals
Sump Weight  40 kg/88 lbs  45 kg/99 lbs  48 kg/106 lbs
Glass Thickness 8mm (5/16")
Refugium Chamer
(Max Int. Dimensions)
180 x 400mm 250 x 400mm 300 x 400mm
7.1" × 15.8" 9.8" × 15.8" 11.8" × 15.8"
Refugium Chamer
(Min Int. Dimensions)
140 x 400mm 200 x 400mm 230 x 400mm
5.5" × 15.8" 7.9" × 15.8" 9.1" × 15.8"
Skimmer Chamber
(Int. DIM, w/o Refugium)
416 x 400mm 528 x 400mm 676 x 400mm
16.4" × 15.8" 20.8" × 15.8" 26.6" × 15.8"
Skimmer Chamber
(Int. DIM, with Min Refugium)
271 x 400mm 323 x 400mm 441 x 400mm
10.7" × 15.8" 12.7" × 15.8" 17.4" × 15.8"
Skimmer Chamber
(Int. DIM, with Max Refugium)
231 x 400mm 273 x 400mm 371 x 400mm
9.1" × 15.8" 10.7" × 15.8" 14.6" × 15.8"
Pump Chamber
(Int. Dimensions)
135x 400mm 150 x 400mm 180 x 400mm
5.3" × 15.8" 5.9" × 15.8" 7.1" × 15.8"
ATO
Tank
ATO Dimensions 203 x 475 x 380mm 305 x 475 x 380mm
8" × 18.7" × 15" 12" × 18.7" × 15"
ATO Volume 33 L/8.7 gals 51 L/13.4 gals
ATO Weight 9 kg/20 lbs 11 kg/24 lbs 11 kg/24 lbs
Glass Thickness 6mm (1/4") 6mm (1/4")
Plumbing Main Drain DN32 (ID: 32mm OD: 40mm)
Emergency Overflow DN32 (ID: 32mm OD: 40mm)
Pump Return DN25 (ID: 25mm OD: 32mm)
Return Hose lD: 25mm OD: 31mm
Nozzle(s) (Thread Size) 2 x M25 (25mm)
Manifold Kit Manifold 15 (Single outlet)
Filtration Filter Socks 2 x 180mm/7" FELT
Filter Sock Silencers 2 x 180mm/7"
Interchangable with Roller Filter YES
Marine-
Shield
Cabinet
Cabinet Model MSII 4825 MSII 6025 MSII 7225
Cabinet Dimensions 1,223 x 643 x 927mm 1,536 x 643 x 927mm 1,836 x 643 x 927mm
48.2" × 25.3" × 36.5" 60.5" × 25.3" × 36.5" 72.3" × 25.3" × 36.5"
Sump Compartment
(Int. Dimensions)
1182 x 549 x 849mm 1,495 x 541 x 849mm 1,795 x 541 x 849mm
46.5" × 21.6" × 33.4" 58.9" × 21.3" × 33.4" 70.7" × 21.3" × 33.4"
Cabinet Framework Anti-corrosion Aluminum Alloy
Door Panels Double-sided 18mm PET laminated Wood Oriented Strand Board
Side Panels Aluminum Composite
Bottom Panels 10mm PVC Board
Back Panels 5mm PVC Board
Cabinet Weight 44 kg/97 lbs 57 kg/126 lbs 60 kg/132 lbs
Cabinet Color WHT-White, BLK-Black

INFINIA REEF

Product Model INFINIA
REEF 150.4
INFINIA
REEF 190.5
INFINIA
REEF 230.6
System Height with Cabinet 1,477mm/58.2" 1,502mm/59.1" 1,527mm/60.1"
Total Volume with ATO 573 L/151.3 gals 730 L/192.8 gals 875 L/231.2 gals
Total System Weight 191 kg/421 lbs 259 kg/571 lbs 330 kg/728 lbs
Display
Tank
Tank Dimensions 1,223 x 643 x 550mm 1,536 x 643 x 575mm 1,836 x 643 x 600mm
48.2" × 25.3" × 21.7" 60.5" × 25.3" × 22.6" 72.3" × 25.3" × 23.6"
Glass Thickness 12mm (1/2") 15mm (3/5″) 19mm (3/4")
Aquarium Volume 399 L/105.5 gals 517 L/136.6 gals 632 L/167 gals
Aquarium Weight 98 kg/216 lbs 146 kg/322 lbs 211 kg/465 lbs
Glass Material Ultra-clear Low Iron glass (front and sides)
Transmittance 91%
In-cabinet
Sump
Dimensions 838 x 475 x 380mm 965 x 475 x 380mm 1,143 x 475 x 380mm
33" × 18.7" × 15" 38" × 18.7" × 15" 45" × 18.7" × 15"
Sump Volume 140 L/37.1 gals 162 L/42.8 gals 192 L/50.8 gals
Sump Weight  40 kg/88 lbs  45 kg/99 lbs  48 kg/106 lbs
Glass Thickness 8mm (5/16")
Refugium Chamer
(Max Int. Dimensions)
180 x 400mm 250 x 400mm 300 x 400mm
7.1" × 15.8" 9.8" × 15.8" 11.8" × 15.8"
Refugium Chamer
(Min Int. Dimensions)
140 x 400mm 200 x 400mm 230 x 400mm
5.5" × 15.8" 7.9" × 15.8" 9.1" × 15.8"
Skimmer Chamber
(Int. DIM, w/o Refugium)
416 x 400mm 528 x 400mm 676 x 400mm
16.4" × 15.8" 20.8" × 15.8" 26.6" × 15.8"
Skimmer Chamber
(Int. DIM, with Min Refugium)
271 x 400mm 323 x 400mm 441 x 400mm
10.7" × 15.8" 12.7" × 15.8" 17.4" × 15.8"
Skimmer Chamber
(Int. DIM, with Max Refugium)
231 x 400mm 273 x 400mm 371 x 400mm
9.1" × 15.8" 10.7" × 15.8" 14.6" × 15.8"
Pump Chamber
(Int. Dimensions)
135x 400mm 150 x 400mm 180 x 400mm
5.3" × 15.8" 5.9" × 15.8" 7.1" × 15.8"
ATO
Tank
ATO Dimensions 203 x 475 x 380mm 305 x 475 x 380mm
8" × 18.7" × 15" 12" × 18.7" × 15"
ATO Volume 33 L/8.7 gals 51 L/13.4 gals
ATO Weight 9 kg/20 lbs 11 kg/24 lbs 11 kg/24 lbs
Glass Thickness 6mm (1/4") 6mm (1/4")
Plumbing Main Drain DN32 (ID: 32mm OD: 40mm)
Emergency Overflow DN32 (ID: 32mm OD: 40mm)
Pump Return DN25 (ID: 25mm OD: 32mm)
Return Hose lD: 25mm OD: 31mm
Nozzle(s) (Thread Size) 2 x M25 (25mm)
Manifold Kit Manifold 15 (Single outlet)
Filtration Filter Socks 2 x 180mm/7" FELT
Filter Sock Silencers 2 x 180mm/7"
Interchangable with Roller Filter YES
Marine-
Shield
Cabinet
Cabinet Model MSII 4825 MSII 6025 MSII 7225
Cabinet Dimensions 1,223 x 643 x 927mm 1,536 x 643 x 927mm 1,836 x 643 x 927mm
48.2" × 25.3" × 36.5" 60.5" × 25.3" × 36.5" 72.3" × 25.3" × 36.5"
Sump Compartment
(Int. Dimensions)
1182 x 549 x 849mm 1,495 x 541 x 849mm 1,795 x 541 x 849mm
46.5" × 21.6" × 33.4" 58.9" × 21.3" × 33.4" 70.7" × 21.3" × 33.4"
Cabinet Framework Anti-corrosion Aluminum Alloy
Door Panels Double-sided 18mm PET laminated Wood Oriented Strand Board
Side Panels Aluminum Composite
Bottom Panels 10mm PVC Board
Back Panels 5mm PVC Board
Cabinet Weight 44 kg/97 lbs 57 kg/126 lbs 60 kg/132 lbs
Cabinet Color WHT-White, BLK-Black

* All volumes are calculated from nett tank dimension less glass thickness at maximum water level.
** Water height and volume may vary dependent on user configuration and system application.
*** All specifications are subject to changes without prior notice.
