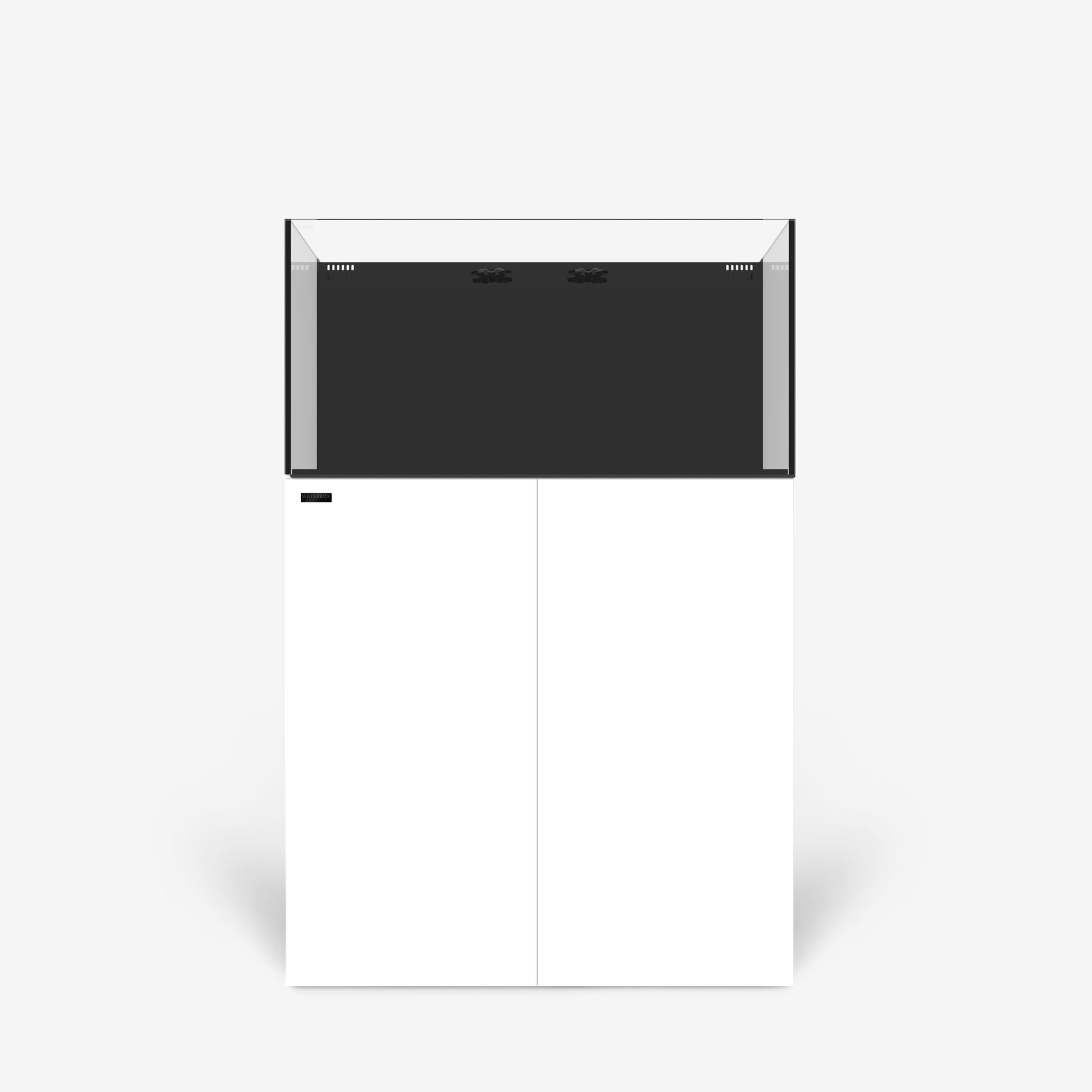

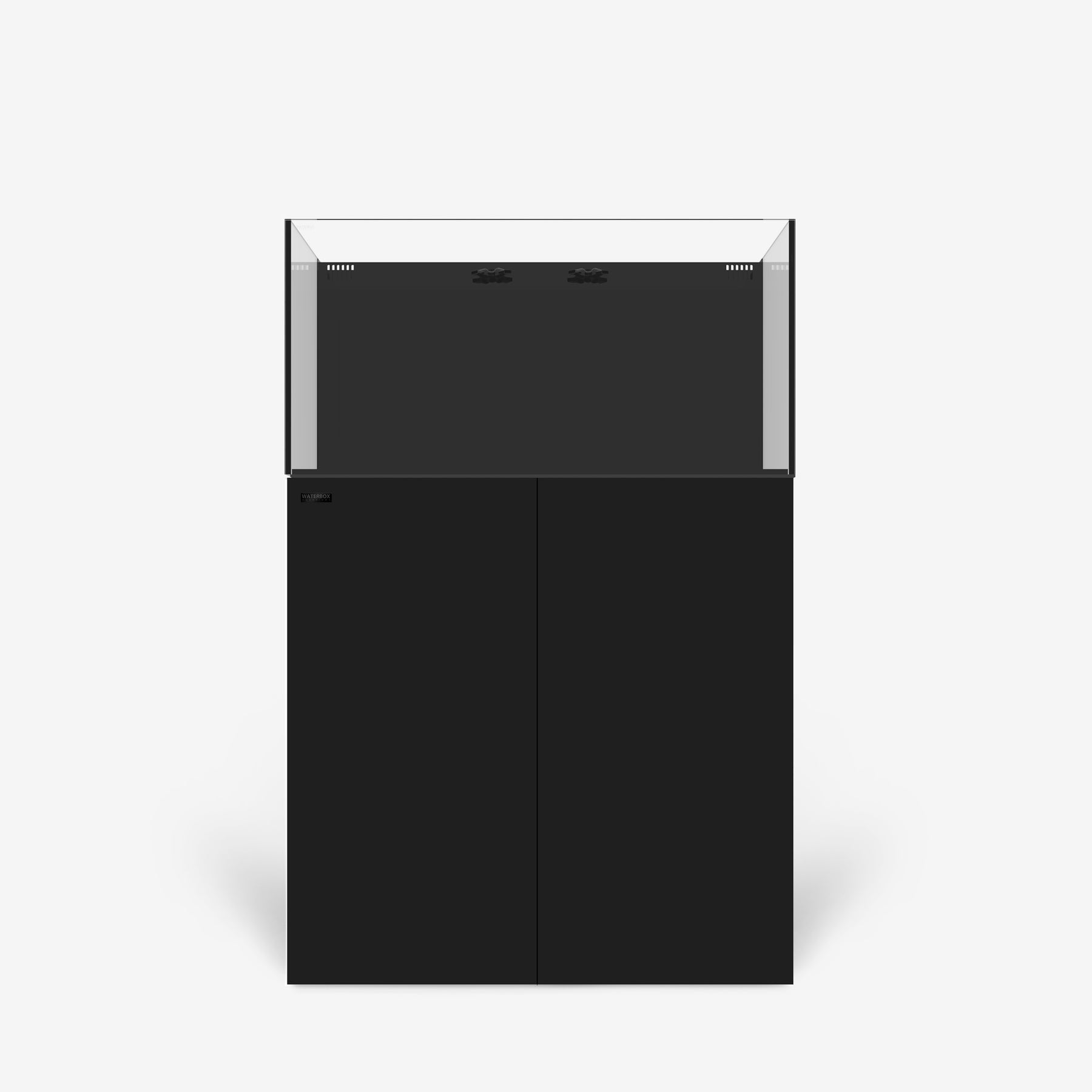

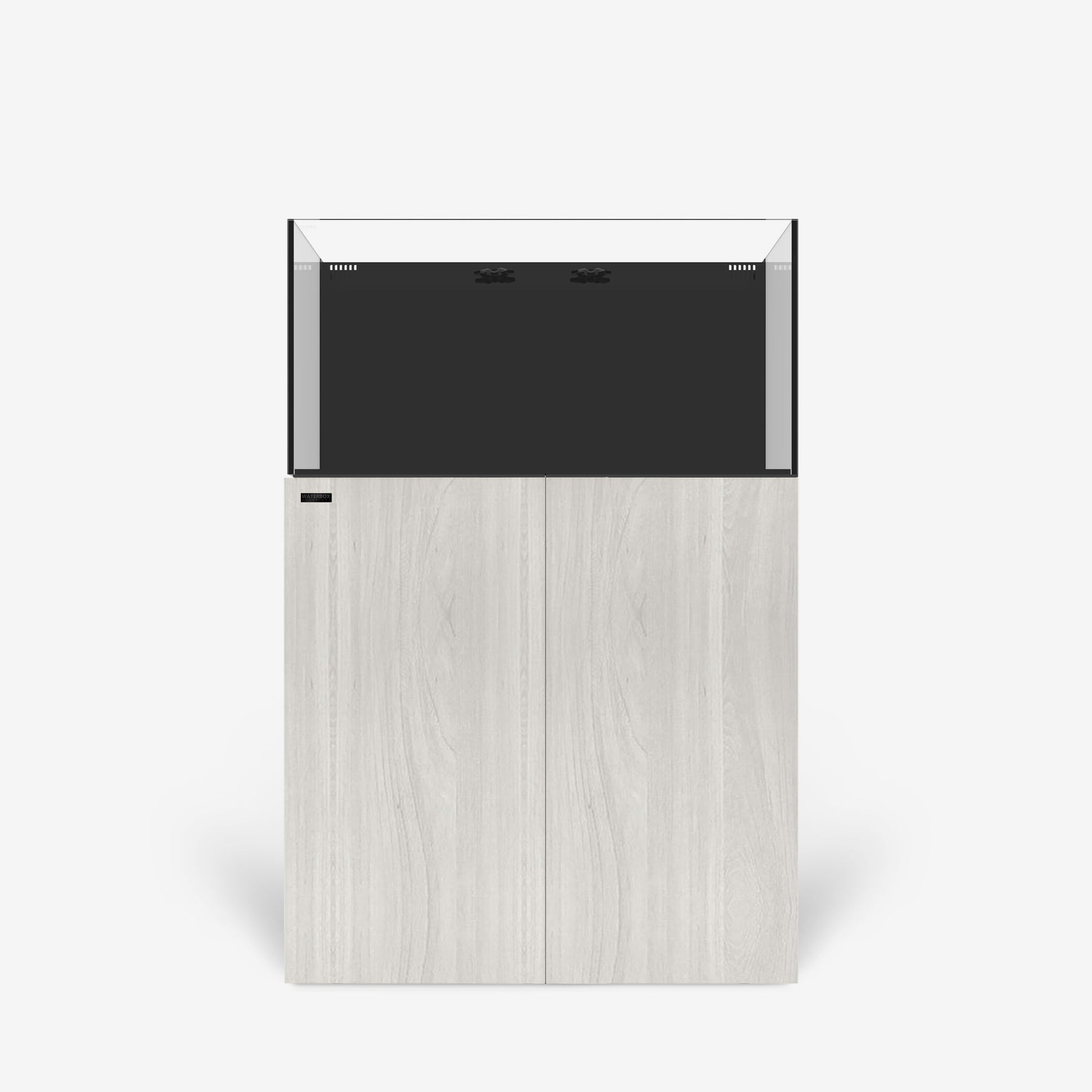

Waterbox Aquariums
AIO 50.3
• Dimensions (LxWxH): 900 x 500 x 450mm (35.4" x 19.7" x 17.7")
• Height with Cabinet:1350mm / 53.1"
• Display Volume: 186L / 49.1gal
• Glass Thickness: 10mm
• Includes: Aquarium Filter Sock, Carbon, Bio Balls (Pump sold separately, Cabinet Optional)
View Full Specifications
• Height with Cabinet:1350mm / 53.1"
• Display Volume: 186L / 49.1gal
• Glass Thickness: 10mm
• Includes: Aquarium Filter Sock, Carbon, Bio Balls (Pump sold separately, Cabinet Optional)
View Full Specifications
Color:White
Pickup available at TOR
Usually ready in 24 hours
AIO 50.3
White
TOR
Pickup available, usually ready in 24 hours
1260 Lakeshore Rd. E
Mississauga ON L5E 3B8
Canada
The Display & Filtration
Newbie or Pro
The AIO was designed so you can keep more in your aquarium with less. Available from 20 through 65 gallons, the AIO delivers an aquatic environment for novice and professional aquarium keepers.
Adjustable Nozzle return allow for precise water agitation.
Ideal for novice and professional aquarium keepers
The unique filtration and baffle system forces the water to travel through the filter socks and then flow into chambers adequately sized for multiple types of filtration media.
AIO 20 & 25 include a perfectly matched return pump for optimal water turnover.
Filtration media is included to keep your water clear and polished.

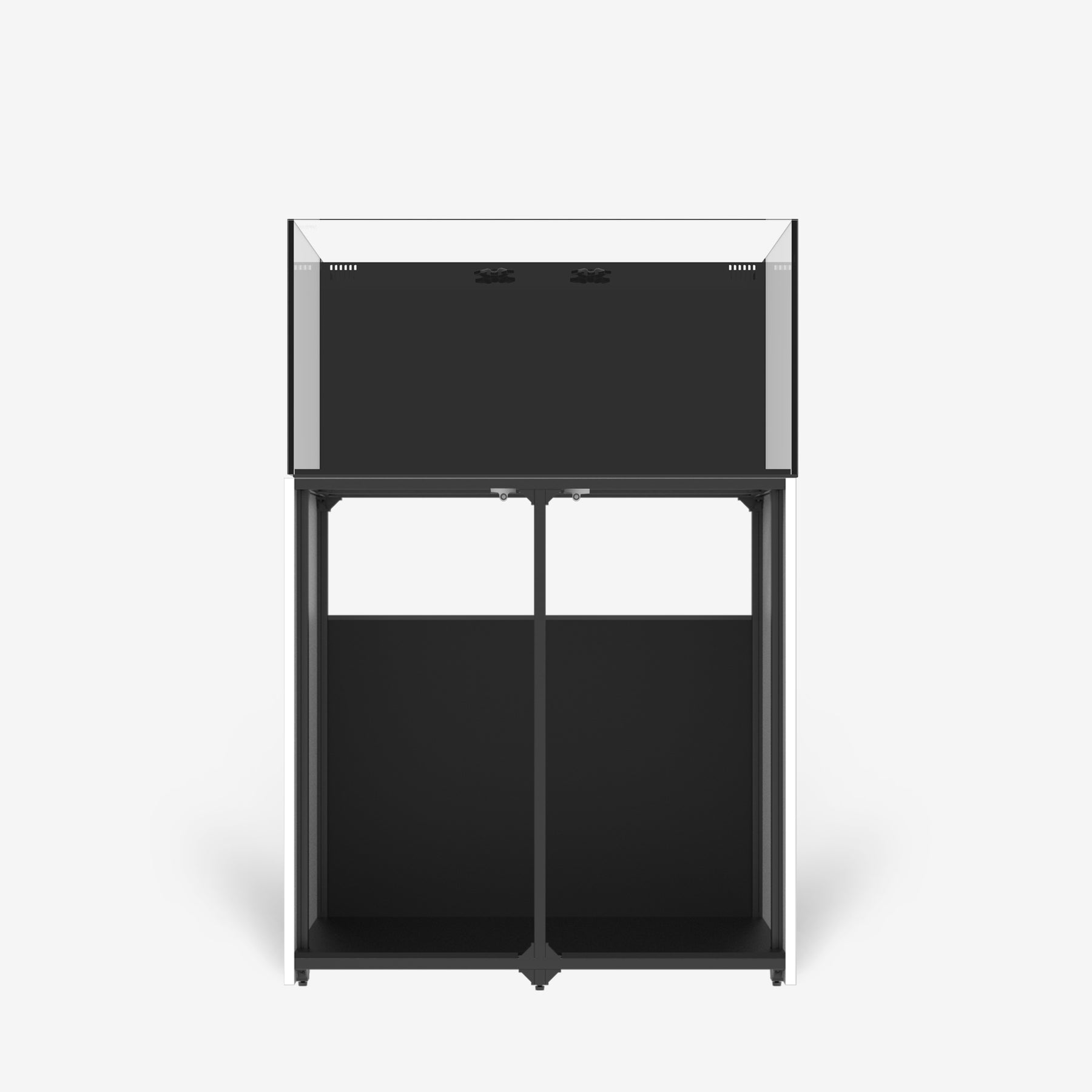

The Cabinetry
Strength & Stability
Waterbox furniture is designed to elevate your living spaces with our first in class cabinetry and finishes. Available in white, black, or aspen.
Engineered to stand the test of time.
Constructed with aluminum framing to easily withstand the weight and humidity of your aquarium system.
Excluding AIO 20 Cube
Excluding AIO 20 Cube
Laminated wood panels skirt the aluminum framing for a sleek, modern look.
Adjustable Leveling Feet provide easy and effective way to ensure your aquarium is level, front to back and side-to-side.
Financing
Build Now. Pay Later.
Waterbox now offers two convenient ways to pay for your aquarium purchase over time.
Technical Specifications
| Product Model | AIO 20 Cube | AIO 25 Peninsula | AIO 35.2 | AIO 50.3 | AIO 65.4 | |
|---|---|---|---|---|---|---|
| Aquarium | Dimensions (LxWxW) | 450 x 450 x 400mm | 600 x 400 x 400mm | 600 x 500 x 450mm | 900 x 500 x 450mm | 1,200 x 500 x 450mm |
| 17.7" × 17.7" × 15.7" | 23.6" × 15.7" × 15.7" | 23.6"×19.7"×17.7" | 35.4"×19.7"×17.7" | 47.2"×19.7"×17.7" | ||
| Tank Volume | 76 L | 90 L | 125 L | 186 L | 249 L | |
| 20.0 gals | 23.7 gals | 33 gals | 49.1 gals | 65.8 gals | ||
| Glass Thickness | 6mm (1/4") | 6mm (1/4") | 8mm (5/16") | 10mm (2/5") | 10mm (2/5") | |
| Aquarium Weight | 17.5 kg/39 lbs | 21 kg/46 lbs | 33 kg/73 lbs | 52 kg/115 lbs | 56 kg/123 lbs | |
| Front & Sides | Ultra-clear Low Iron glass (front and sides) | |||||
| Transmittance | 91% | |||||
| Filtration Compartment (Int. Dimensions) |
438 x 80 x 387mm | 388 x 80 x 387mm | 584 x 120 x 435mm | 880 x 120 x 433mm | 1180 x 120 x 433mm | |
| 17.2" × 3.1" ×15.2" | 15.3" × 3.1" × 15.2" | 23" × 4.7" × 17.1" | 34.6" × 4.7" × 17" | 46.5" × 4.7" × 17" | ||
| Filter Sock Chamber (Int. Dimensions) |
80 x 80 x 387mm | 80 x 80 x 387mm | 81 x 120 x 435mm | 81 x 120 x 433mm | 161 x 120 x 433mm | |
| 3.1" × 3.1" × 15.2" | 3.1" × 3.1" × 15.2" | 3.2" × 4.7" × 17.1" | 3.2" × 4.7" × 17" | 6.3" × 4.7" × 17" | ||
| Media/Skimmer Chamber (Int. Dimensions) |
200 x 80 x 387mm | 173 x 80 x 387mm | 101 x 120 x 435mm | 154 x 120 x 433mm | 150 x 120 x 433mm | |
| 7.9" × 3.1" ×15.2" | 6.8" ×3.1" × 15.2" | 4"×4.7"×17.1" | 6.1"×4.7"×17" | 5.9"×4.7"×17" | ||
| Pump Chamber (Int. Dimensions) |
80 x 118 x 387mm | 80 x 95 x 387mm | 140 x 120 x 435mm | 300 x 120 x 433mm | 221.5 x 120 x 433mm | |
| 3.1" × 4.6" × 15.2" | 3.1" × 3.7" × 15.2" | 5.5"×4.7"×17.1" | 11.8"×4.7"×17" | 8.7"×4.7"×17" | ||
| Directional Nozzle (Thread Size) |
1 x M14 (14mm), Flare | 1 x M20 (20mm), Y-shape | 2 x M20 (20mm), Y-shape | |||
| Return Hose | lD: 12mm OD: 16mm | lD: 12mm OD: 16mm | lD: 18mm OD: 24mm | |||
| Pump | AP-1500 | n.a. | ||||
| Pump Flow | 1000 LPH/265 GPH | n.a. | ||||
| EVA Mat | x 1 | x 1 | ||||
| Filtration | 225 Micron Filter Socks | 1 x 70mm/2.75" FELT | 2 x 70mm/2.75" FELT | 2 x 70mm/2.75" FELT | 4 x 70mm/2.75" FELT | |
| Filtration Sponge | x 2 | x 4 | x 4 | x 4 | ||
| Activated Carbon | 150g | 2 x 150g | 2 x 150g | 3 x 150g | ||
| Ceramic Ring | 300g | 2 x 300g | 2 x 300g | 3 x 300g | ||
| Cabinet (optional) |
Cabinet Model | PB 1818 | PB 2416 | ALU 2420 | ALU 3620 | ALU 4820 |
| Dimensions | 450 x 450 x 810mm | 600 x 400 x 810mm | 600 x 500 x 900mm | 900 x 500 x 900mm | 1,200 x 500 x 900mm | |
| 17.7"×17.7"×31.9" | 23.6"×15.7"×31.9" | 23.6"×19.7"×35.4" | 35.4" × 19.7" × 35.4" | 47,2" × 19.7" × 35.4" | ||
| Material | 18mm PVC Laminated Wood Oriented Strand Board | Anti-corrosion Aluminum Alloy Framed | ||||
| Door(s) & Side Panels | 18mm PVC Laminated Wood Oriented Strand Board | |||||
| Bottom Panels | 10mm PVC Board | |||||
| Back Panels | 6mm PVC Board | |||||
| Cabinet Weight | 21 kg/46 lbs | 25 kg/55 lbs | 28 kg/62 lbs | 34 kg/75 lbs | 41 kg/90 lbs | |
| Color | White/Black/Aspen | WHT-White, BLK-Black, ASP-Aspen | ||||
