Waterbox Aquariums
REEF LX 230.5
Aquarium
More Gallons, More Potential
The REEF LX total system volume begins at 189.9 gallons (719L) and goes up to 319.4 gallons (1209L).
Full Glass Overflow
Overflow boxes are constructed entirely of glass with water-etched weir teeth.
Dual Overflow Return Nozzles
Write content about your store
Glass Overflow Cover
Each Waterbox has an overflow cover with unique branding.
Ultra Low Iron Glass
Our aquariums are all manufactured using Low Iron Ultra Clear glass that is diamond beveled providing 91% transmittance.
High Strength Silicone
Manufactured using german made Wacker silicone will provide your aquarium with the longevity it needs.
Standard 90 Degree Joints
Manufactured using the standard aquarium manufacturing joints for maximum durability and strength.

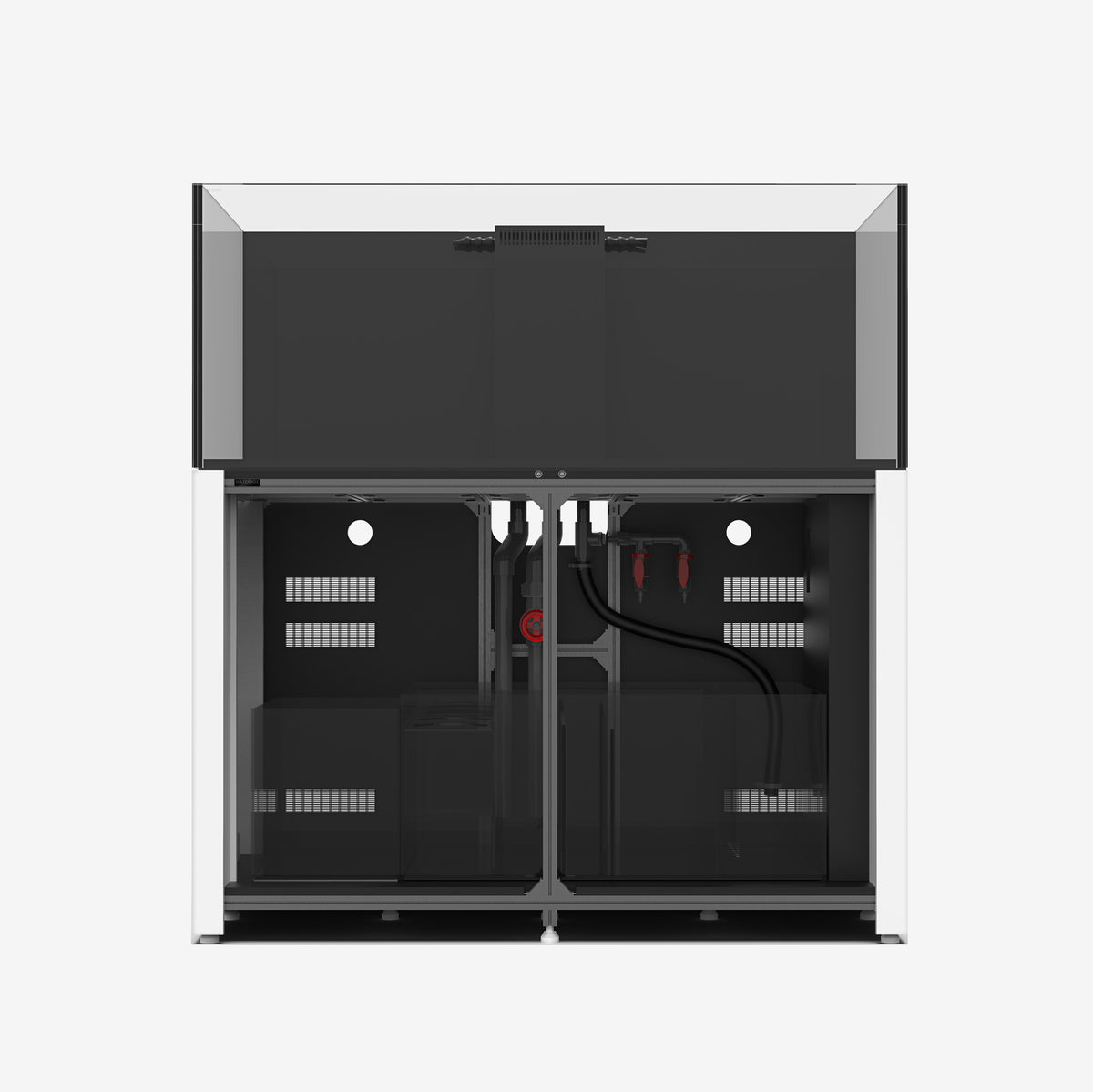

Plumbing
Ready to Assemble Plumbing
Our engineers have designed the REEF LX with a ready to assemble plumbing kit that provides easy installation without any gluing required.
Precision Gate Valve
Maximizes your control of the flow to ensure whisper-quiet operation.
Safety Drain
Keeps your aquarium flowing in the event of a main drain clog.
Check Valve
Preinstalled to prevent backflow and sump overflows.
Dual Manifold System
Connects seamlessly with your desired filtration and reactors.

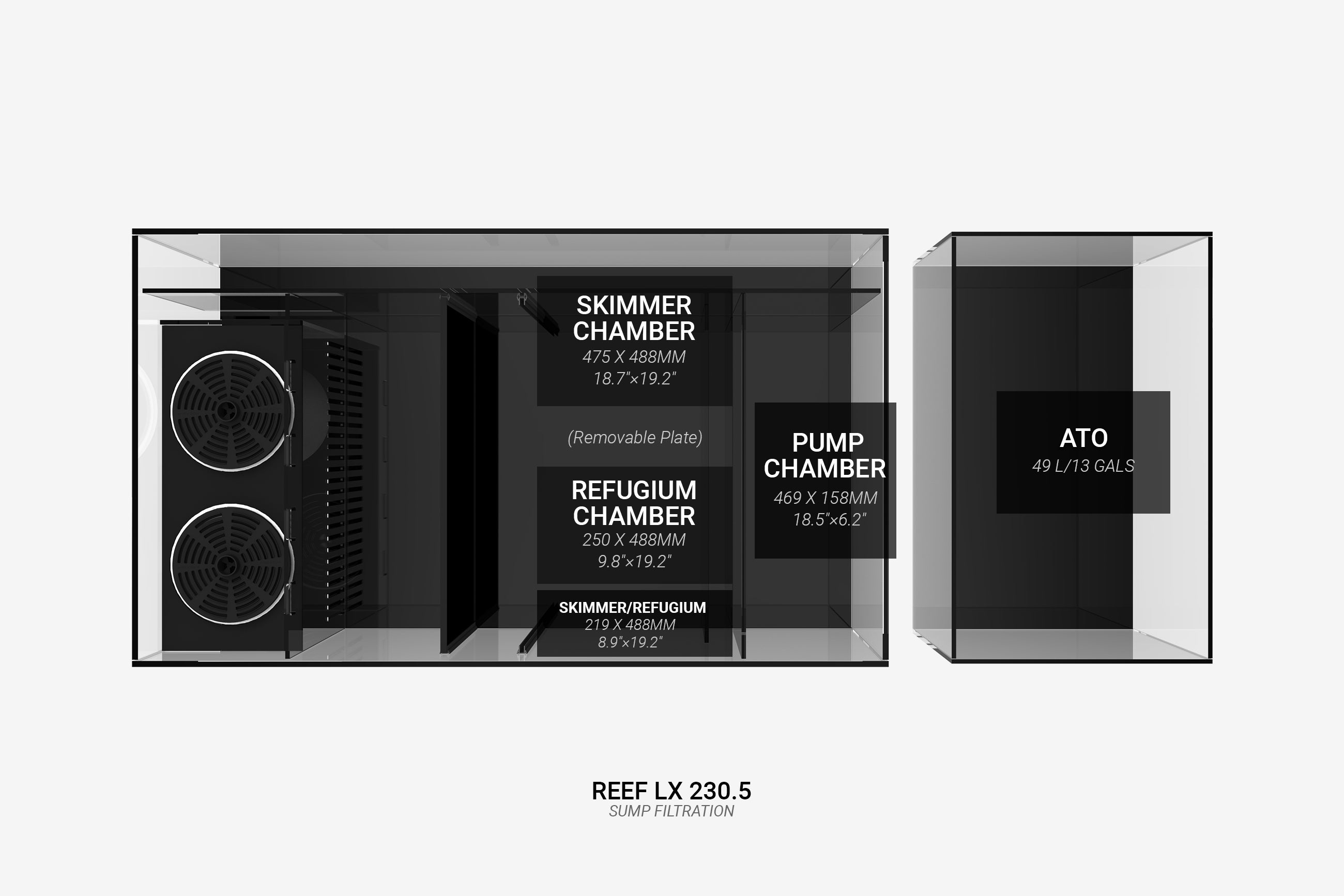

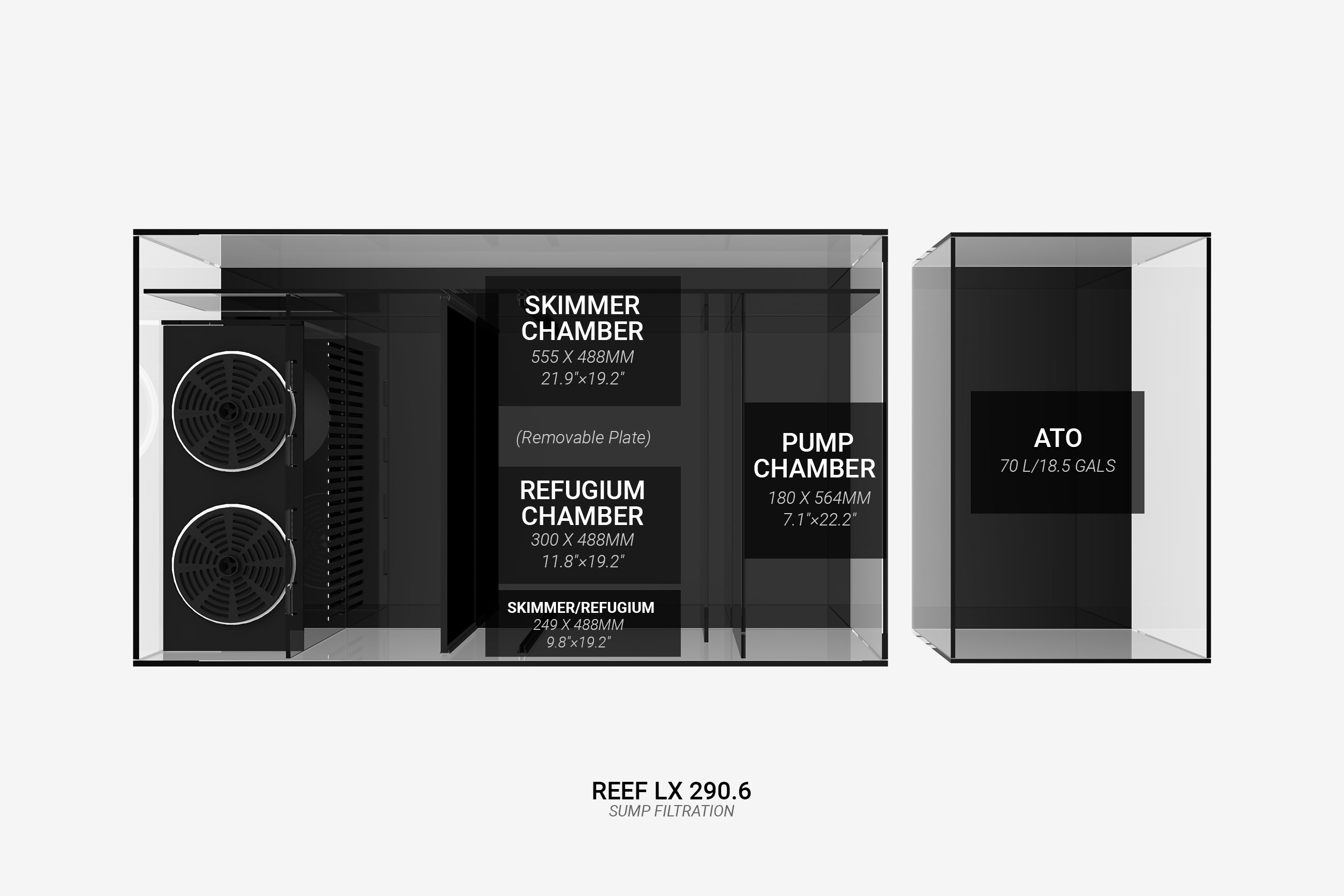

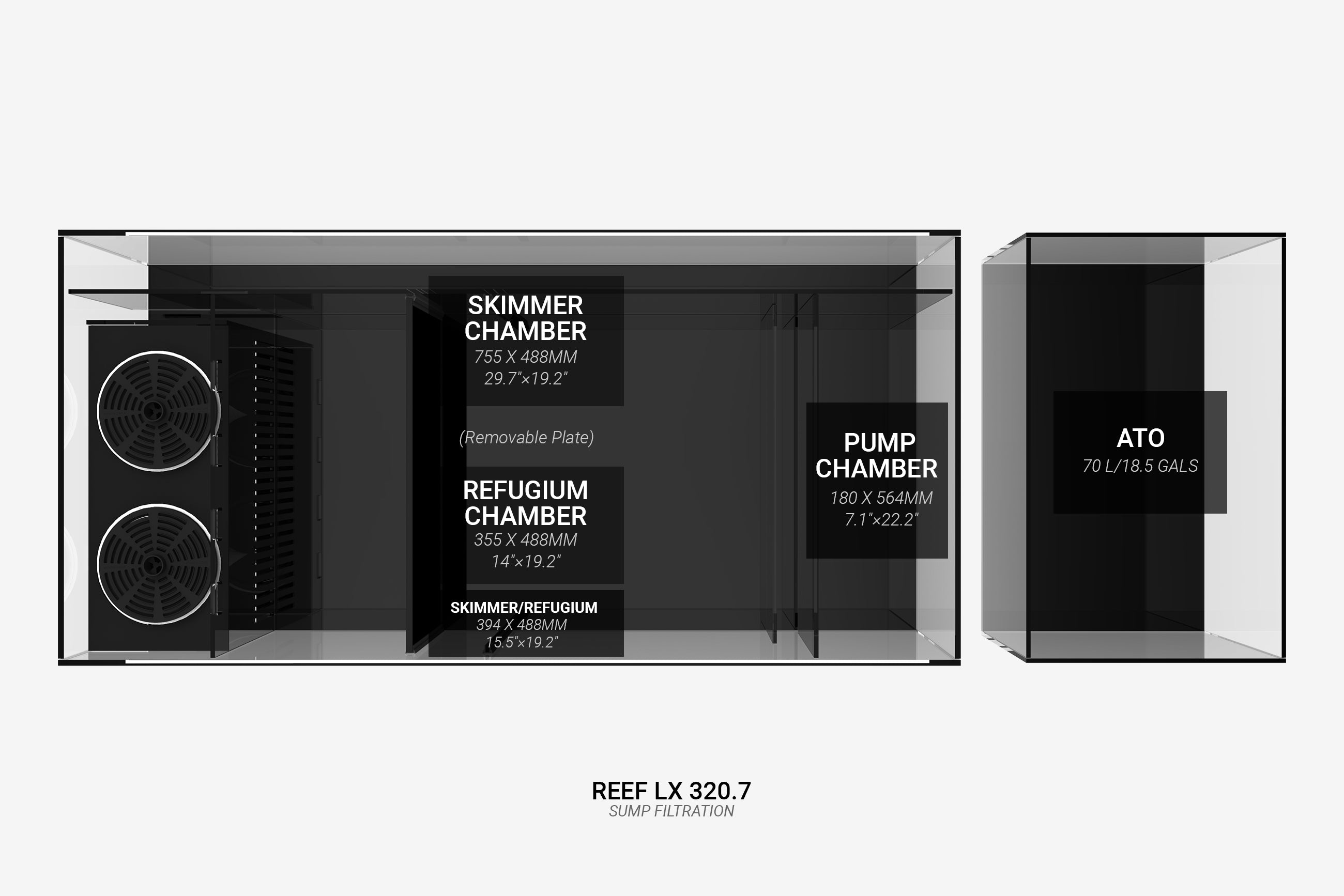

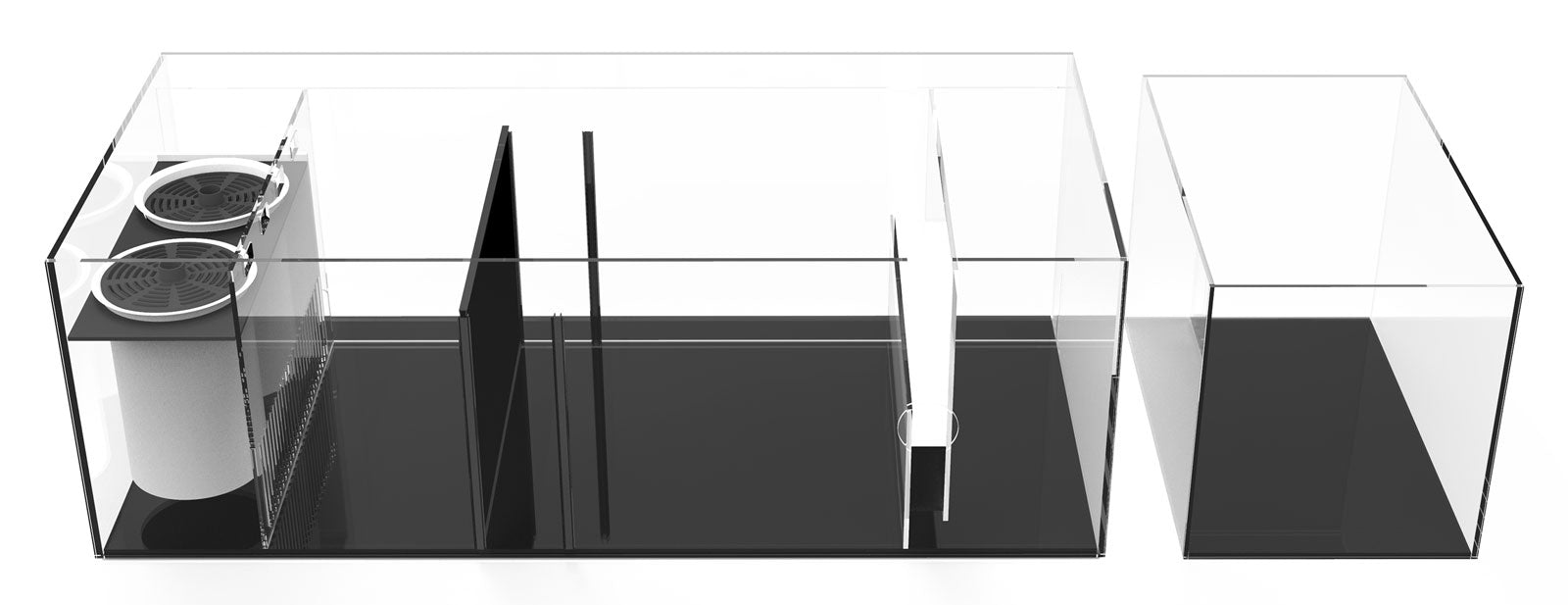

Sump System
Filtration for the Pros
Our REEF LX™ systems shine above the rest with our thoughtfully designed, sized and placed sump system which provides ample space for all filtration equipment.

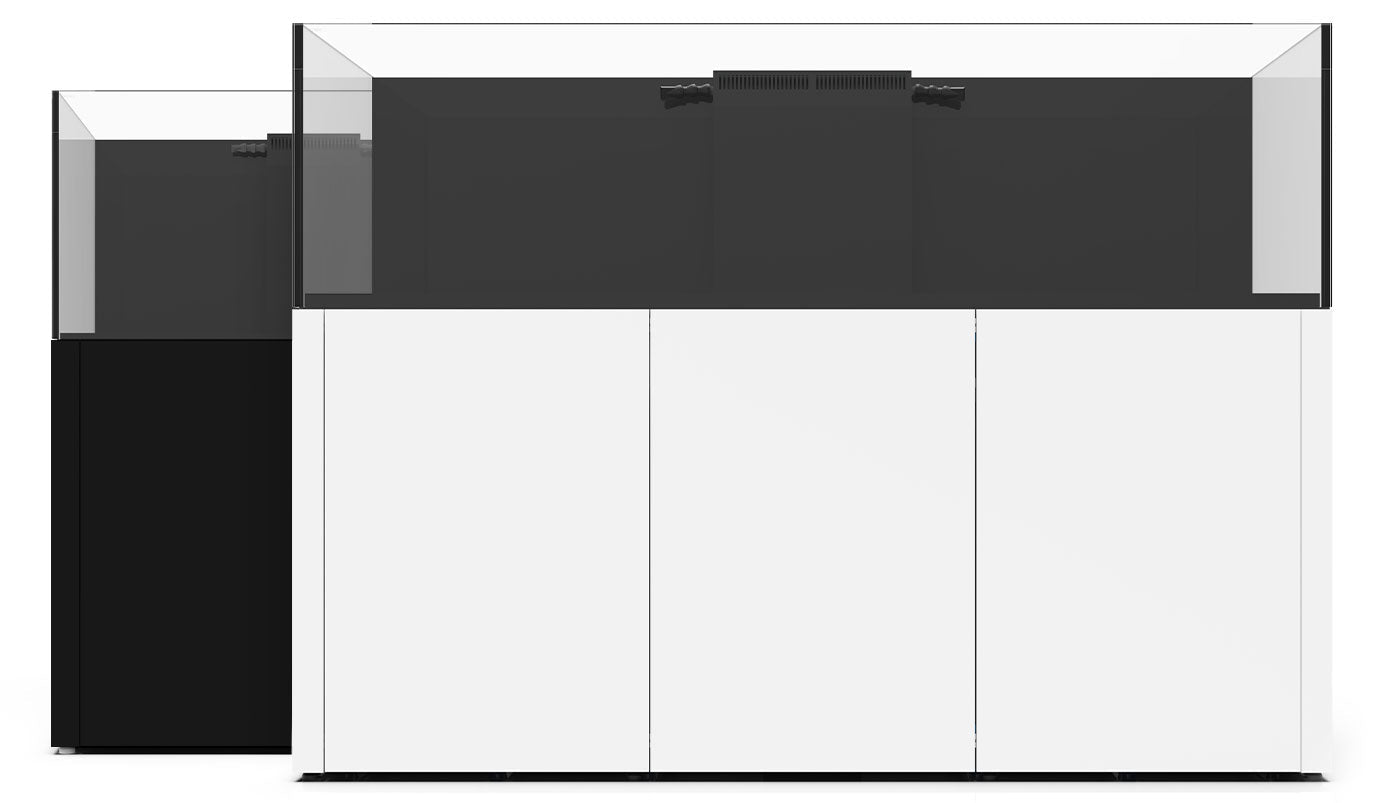

Cabinetry
Built For Strength & Stability
The Waterbox MARINESHIELD™ series is our most advanced line of cabinetry yet. It comes fully assembled from us to your doorstep.
Subheading

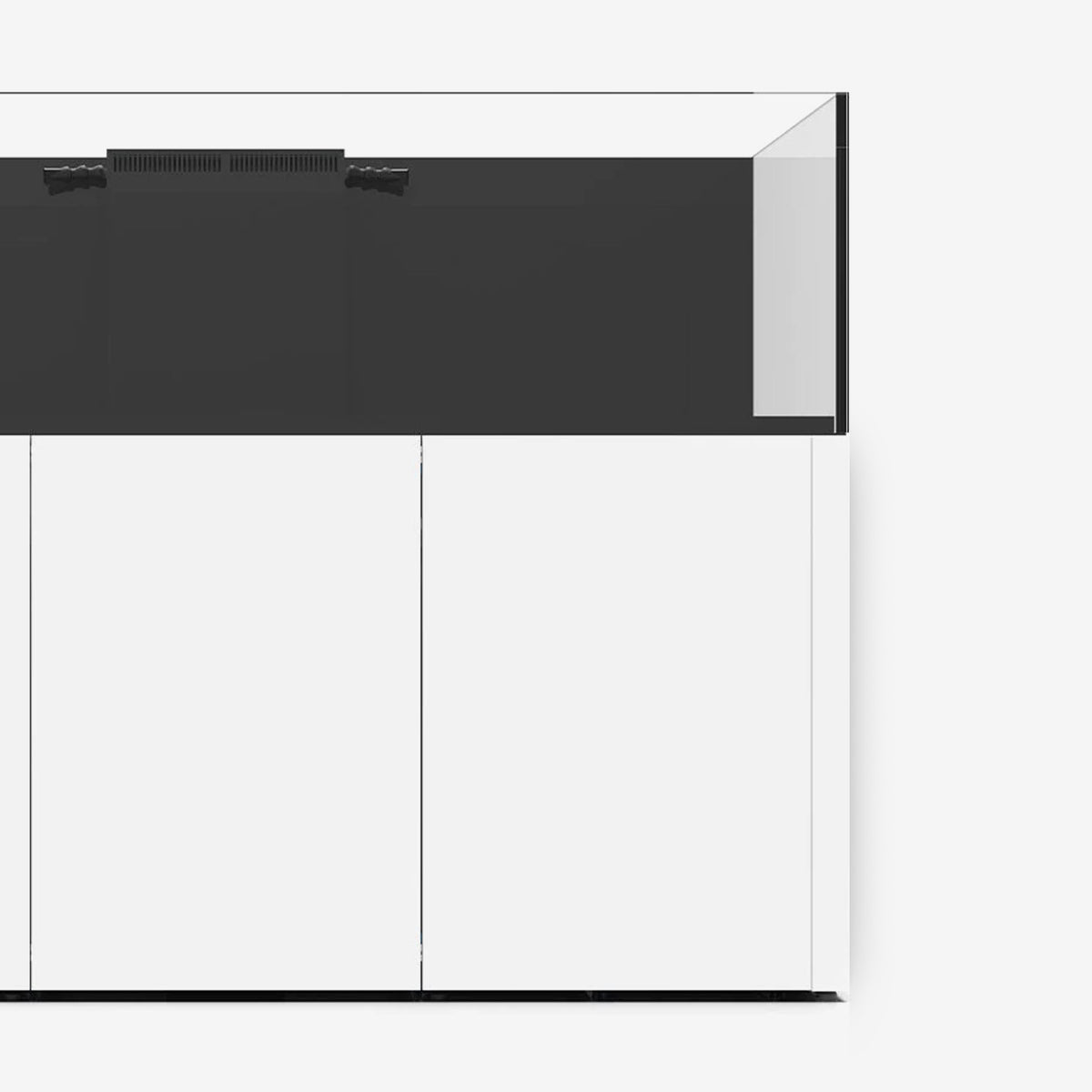

Plywood Cabinetry
This cabinetry utilizes fully waterproof wood composite materials and comes fully assembled. Available in White or Black.
Subheading

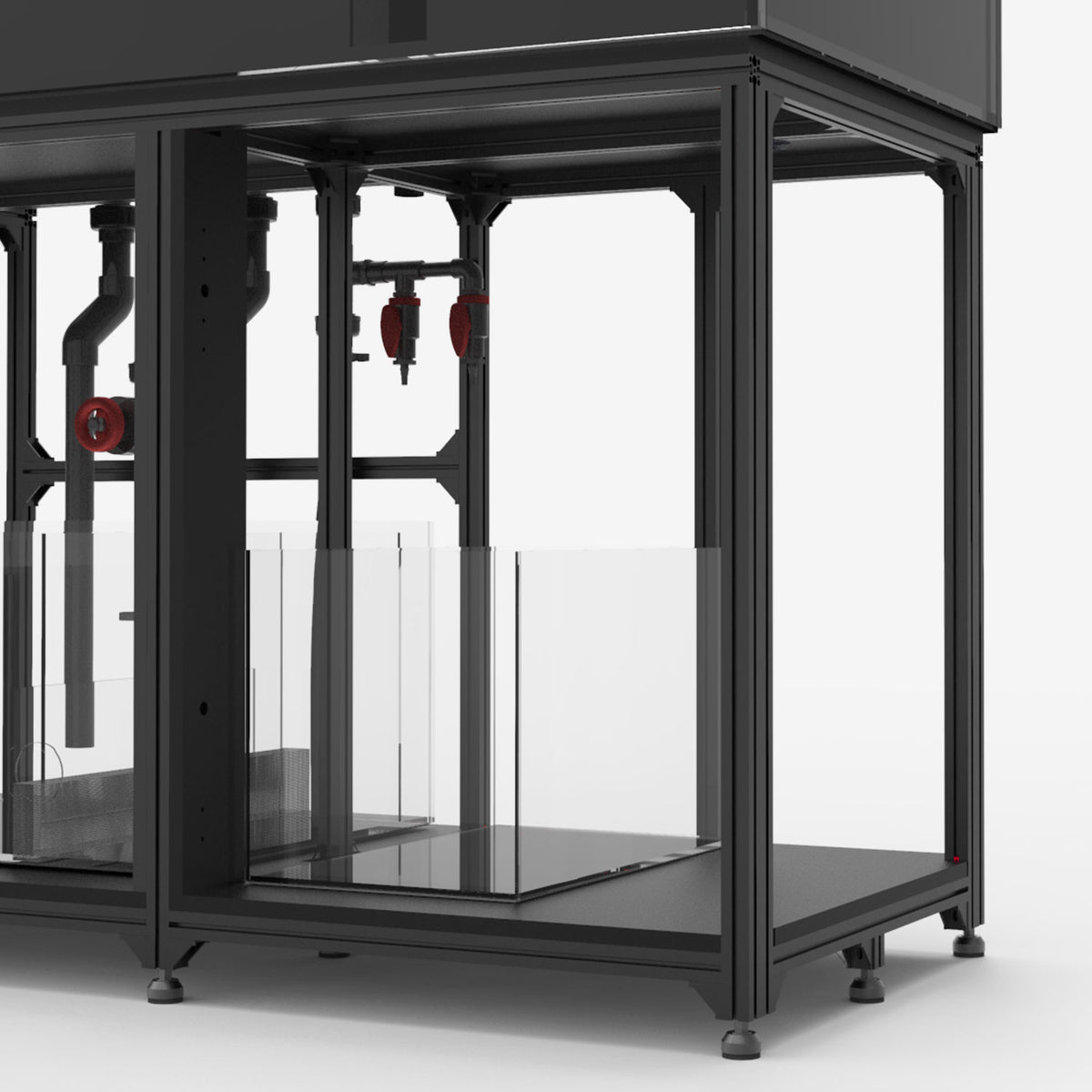

Powder Coated Aluminum Framing
Designed for maximum rigidity, the Waterbox ALU frame supports 50% more than traditional aquarium cabinetry.
Cabinetry

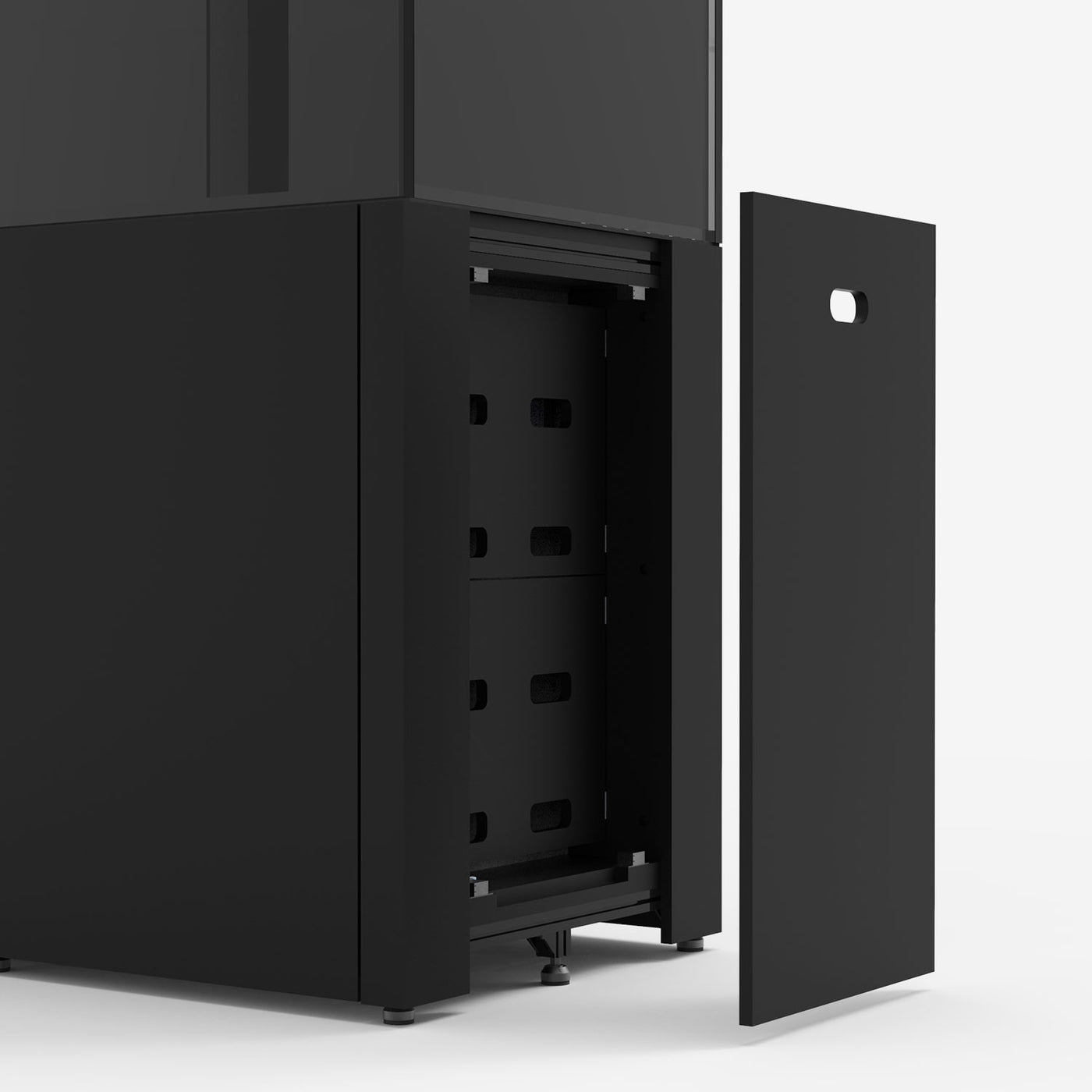

Control Center
Each Waterbox ALU cabinet includes a control center, strategically designed to accommodate all major controllers, drivers and dosers. The control center is flexible and can be installed on either side of the cabinet.
Cabinetry

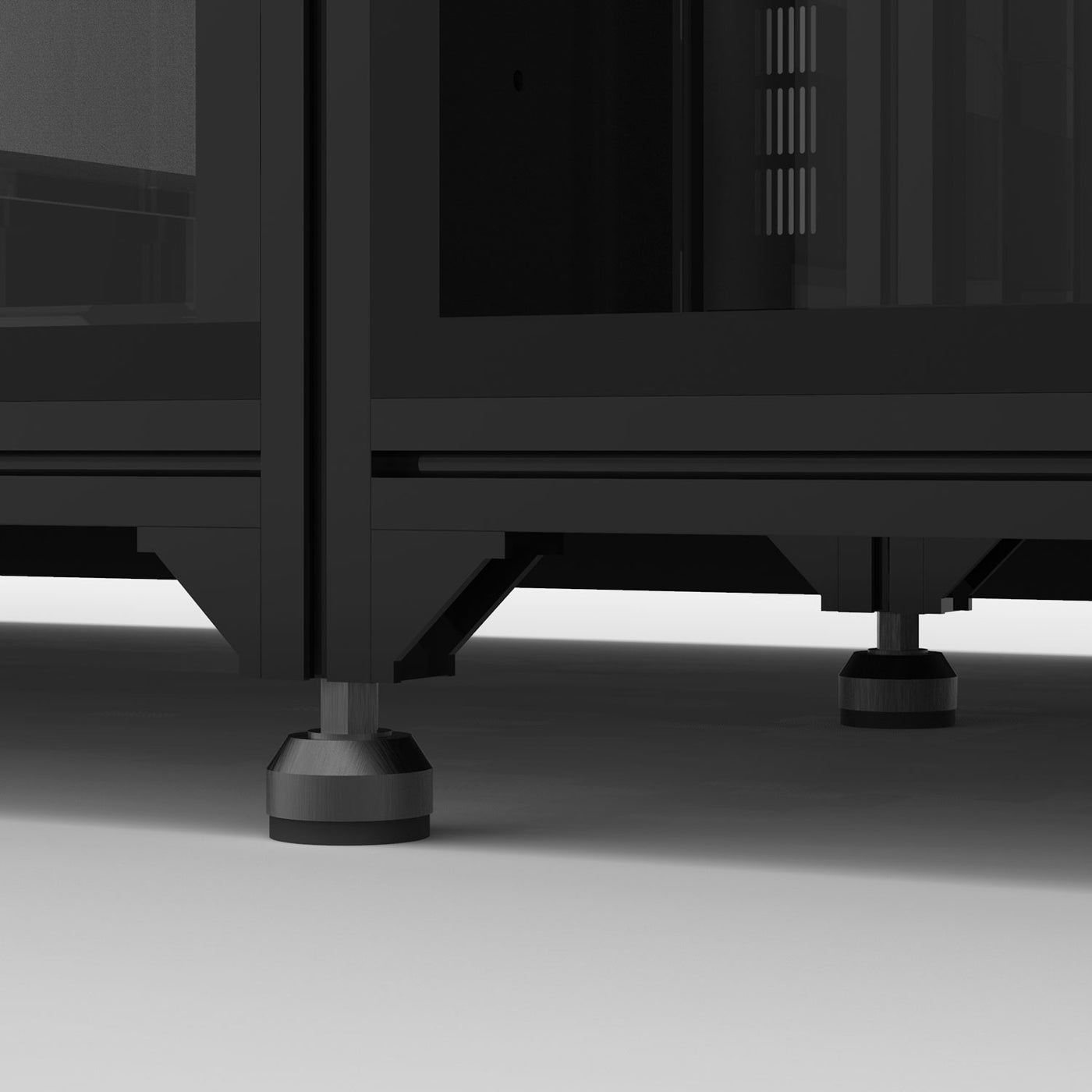

Leveling Feet
Eccentric leveling feet create the most stable foundation for these oversized aquarium systems.

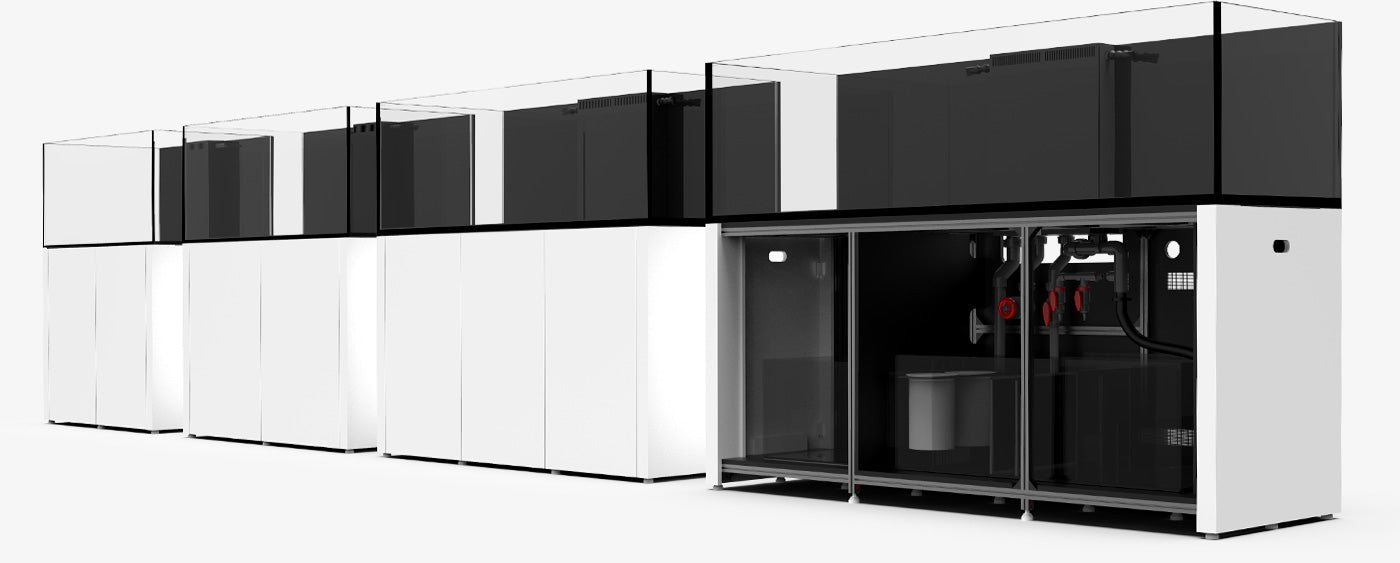

REEF LX
190 - 320 Gallons
REEF LX (Gen. 1)
Technical Specifications
| Product Model | REEF LX 190.4 | REEF LX 230.5 | REEF LX 270.6 | REEF LX 320.7 | |
|---|---|---|---|---|---|
| Display |
Dimensions (Length x Width x Height) |
1268 x 750 x 600mm | 1510 x 750 x 600mm | 1836 x 750 x 600mm | 2200 x 750 x 600mm |
| 49.9"×29.5"×23.6" | 59.4"×29.5"×23.6" | 72.3"×29.5"×23.6" | 86.6"×29.5"×23.6" | ||
| Glass Thickness | 15mm (3/5″) | 19mm (3/4") | 19mm (3/4") | 19mm (3/4") | |
| Bottom Thickness | 19mm (3/4") | 19mm (3/4") | 30mm (1.18") (Double 15mm(.59")) |
30mm (1.18") (Double 15mm(.59")) |
|
| Water Height | 585mm/23.0" | 585mm/23.0" | 585mm/23.0" | 585mm/23.0" | |
| Aquarium Volume | 518 L/136.8 gals | 609 L/160.9 gals | 730 L/192.8 gals | 877 L/231.8 gals | |
| Glass Material | Ultra-clear glass | ||||
| Transmittance | 91% | ||||
| Sump | Dimensions (Length x Width x Height) |
750 x 580 x 400mm | 920 x 580 x 400mm | 1000 x 580 x 400mm | 1200 x 580 x 400mm |
| 29.5"×22.8"×15.7" | 36.2"×22.8"×15.7" | 39.4"×22.8"×15.7" | 47.2"×22.8"×15.7" | ||
| Sump Volume | 162 L/42.9 gals | 200 L/52.8 gals | 218 L/57.5 gals | 262 L/69.2 gals | |
| Glass Thickness | 8mm (5/16") | 8mm (5/16") | 8mm (5/16") | 8mm (5/16") | |
| Refugium Chamber (Max Dimensions) |
220 x 335mm | 250 x 488mm | 300 x 488mm | 355 x 488mm | |
| 8.7"×13.2" | 9.8"×19.2" | 11.8"×19.2" | 14"×19.2" | ||
| Refugium Chamber (Min Dimensions) |
220 x 335mm | 145 x 488mm | 195 x 488mm | 250 x 488mm | |
| 8.7"×13.2" | 5.7"×19.2" | 7.7"×19.2" | 9.8"×19.2" | ||
| Skimmer Chamber (w/o Refugium) |
335 x 488mm | 475 x 488mm | 555 x 488mm | 755 x 488mm | |
| 13.2"×19.2" | 18.7"×19.2" | 21.9"×19.2" | 29.7"×19.2" | ||
| Skimmer Chamber (with Min Refugium) |
263 x 335mm | 325 x 488mm | 355 x 488mm | 500 x 488mm | |
| 10.4"×13.2" | 12.8"×19.2" | 14"×19.2" | 19.7"×19.2" | ||
| Skimmer Chamber (with Max Refugium) |
263 x 335mm | 219 x 488mm | 249 x 488mm | 394 x 488mm | |
| 10.4"×13.2" | 8.9"×19.2" | 9.8"×19.2" | 15.5"×19.2" | ||
| Pump Chamber | 150 x 564mm | 180 x 564mm | 180 x 564mm | 180 x 564mm | |
| 5.9"×22.2" | 7.1"×22.2" | 7.1"×22.2" | 7.1"×22.2" | ||

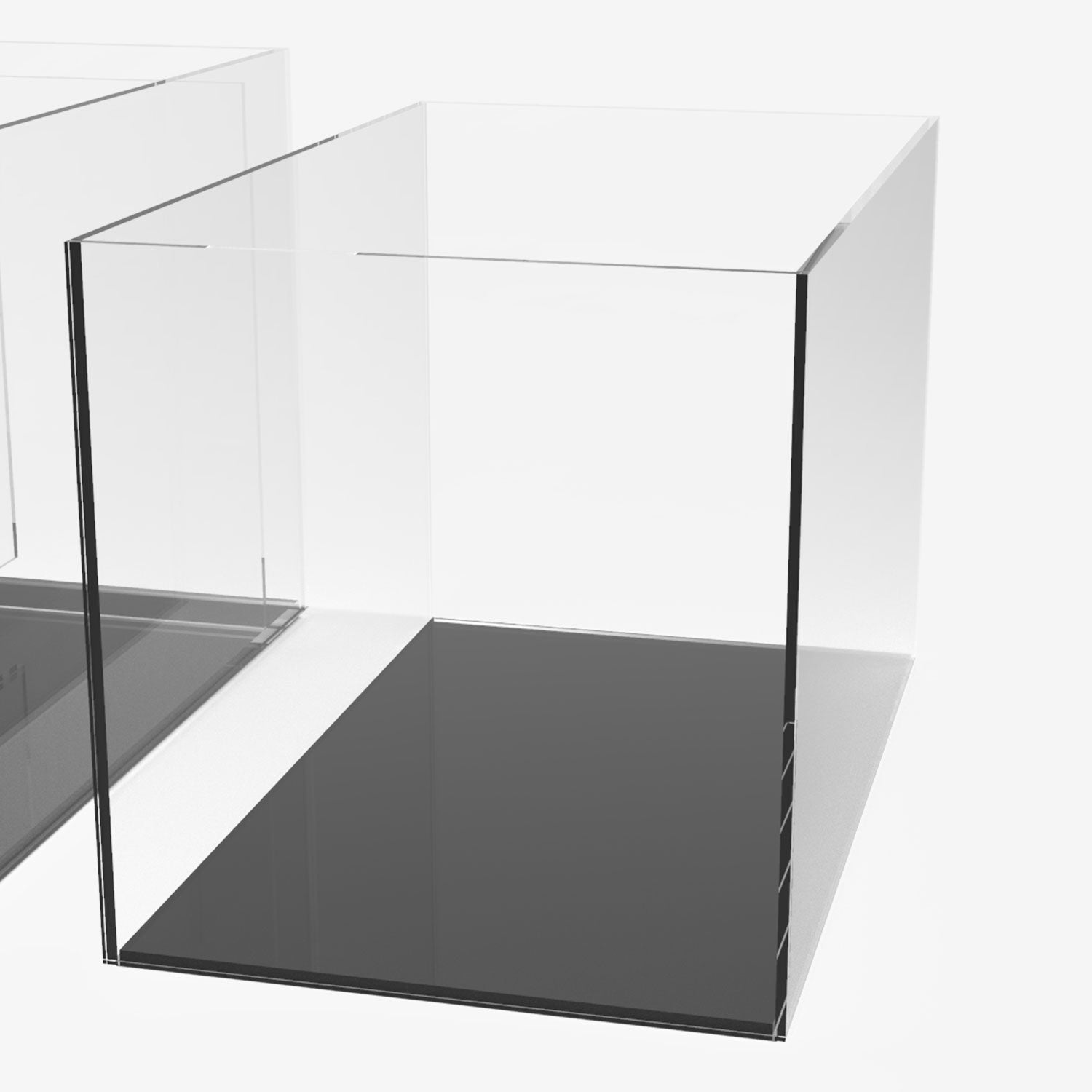

| ATO | ATO Dimensions (Length x Width x Height) |
200 x 580 x 370mm | 250 x 580 x 370mm | 350 x 580 x 370mm | 350 x 580 x 370mm |
| 7.9"×22.8"×14.6" | 9.8"×22.8"×14.6" | 13.8"×22.8"×14.6" | 13.8"×22.8"×14.6" | ||
| ATO Volume | 39 L/10.3 gals | 49 L/13 gals | 70 L/18.5 gals | 70 L/18.5 gals | |
| Glass Thickness | 6mm (1/4") | 6mm (1/4") | 6mm (1/4") | 6mm (1/4") | |
| Plumbing | Main Drain | DN32 | DN32 | DN25 x 2 | DN25 x 2 |
| Emergency Overflow | DN32 | DN32 | DN32 | DN32 | |
| Pump Return | DN25 | DN25 | DN25 | DN25 | |
| Nozzles | DN20 x 2 | DN20 x 2 | DN20 x 2 | DN20 x 2 | |
| Filter Socks | 180mm/7" x 2 | 180mm/7" x 2 | 180mm/7" x 2 | 180mm/7" x 2 | |
| Cabinet | Cabinet Model | ALU 5030 | ALU 6030 | ALU 7230 | ALU 8730 |
| Dimensions (Length x Width x Height) |
1268 x 750 x 1000mm | 1510 x 750 x 1000mm | 1836 x 750 x 1000mm | 2200 x 750 x 1000mm | |
| 49.9"×29.5"×39.4" | 59.4"×29.5"×39.4" | 72.3"×29.5"×39.4" | 86.6"×29.5"×39.4" | ||
| Material | 18mm Waterbox ALU fully water-proof cabinet panels Eccentric wheel Leveling Feet CE Aluminum Extrusion Frame with anti-rust connectors |
||||
| Paint | PU Painting (side & front), Powder coated for aluminum profile. | ||||
| Color | W-White, B-Black , | ||||
| System | Height with Cabinet | 1600mm/63" | 1600mm/63" | 1600mm/63" | 1600mm/63" |
| Total Volume | 719 L/189.9 gals | 858 L/226.7 gals | 1017 L/268.7 gals | 1209 L/319.4 gals | |
